VSI Electronics Digital Friability Test Apparatus, Certification : CE Certified, ISO 9001:2008

VSI Electronics Digital Friability Test Apparatus, Certification : CE Certified, ISO 9001:2008

Listing ID #5842169

Get Latest Price

MOQ 1 Piece
CertificationCE Certified, ISO 9001:2008
Voltage220V
TypeFriability Apparatus
Warranty1yrs
Supply Type Exporter, Supplier, Importer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Certification CE Certified, ISO 9001:2008
Voltage 220V
Type Friability Apparatus
Warranty 1yrs
Country of Origin India
Brand VSI Electronics
Electric Motor Low RPM A.C. Motor
Payment Terms NEFT, IMPS, DD, D/P, T/T, Other
Auto Removal of Sample Yes
No. of Wheels Two in Model VSI-17, One in Model VSI-18
Rotational Speed 25 RPM +/- 1
Test Time Programmable Programmable
Time Range 1 sec to 99 min 59 sec
Audio Alarm at Completion Yes

VSI Electronics Private Limited is renowned manufacturer and supplier of hi-tech instruments used in the pharmaceutical industries, institutions and research laboratories. We are well established Friability Test Apparatus manufacturers, supplier and exporters from India since many years. Company’s Digital Friability Test Apparatus is a precision instrument for measuring obression strength of the tablets. The Friability Test Apparatus is designed as per IP/USP standards. The unit is equipped with two transparent acrylic drums which rotate at a speed of 25 +/- 1 rpm. Each of the two acrylic drums are provided with an arm which carries the tablets along with it up to a predetermined height and allows them to fall from that specified height, while the drums are rotating. It is fitted with a digital revolution counter showing the current number of revolutions for the test. A thumb wheel switch is used to set the desired number of rotations. Provision is made to remove the lid of the acrylic drum by unscrewing just one knob. This is available in 1 drum and 2 drum assemblies.

Digital Friability Test Apparatus (Double Drum) (VSI-17) measures Obsession Strength of Tablets with programmable timer. Rotation Speed 25 rpm +/- 1, Auto & Manual mode of operation with 2 acrylic drums. Results are displayed on 3 digit pre-settable control.

Digital Friability Test Apparatus (Single Drum) (VSI-18) measures Obsession Strength of Tablets with programmable timer. Rotation Speed 25 rpm +/- 1, Auto & Manual mode of operation with 1 acrylic drum. Results are displayed on 3 digit pre-settable control.

SALIENT FEATURES:

Programmable Time with Digital Display
Auto Stop after Completion of Set Time with Alarm
Auto Removal of Sample without Opening the Drum
Precise Control of RPM 25 +/- 1

We also offer Microprocessor Based Friability Apparatus, Model VSI-16

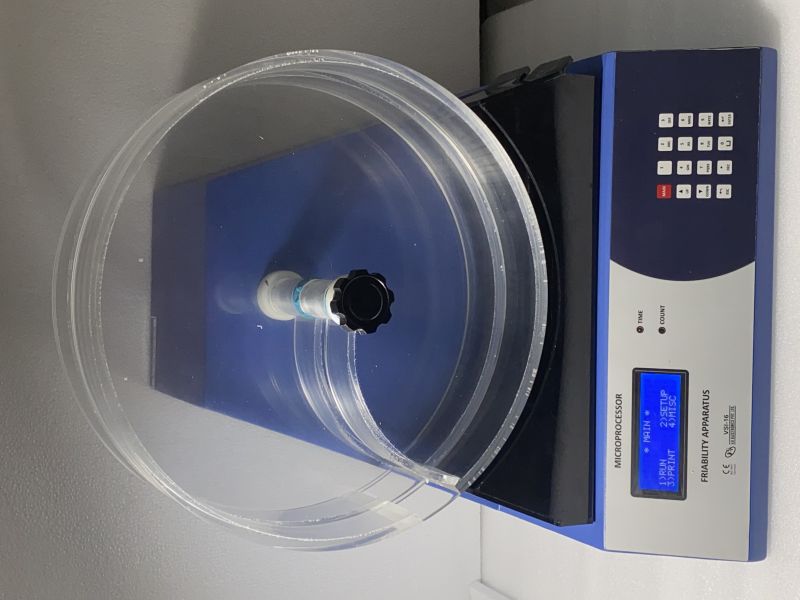

Microprocessor Friability Apparatus (Double Wheel) (VSI-16) measures the tendency of a tablet to chip or breakdown to pieces when held under mechanical stresses. It uses the latest microcontroller, 20x4 lines alphanumeric LCD display with backlit, soft touch membrane type keys, Rotational speed of drums can be set at different speeds (20-60 rpm). The samples can be loaded and unloaded conveniently without removing the drums, USB interface for computer connection available.

SALIENT FEATURES

Complies with USP, IP Specifications
Microprocessor based, easy to use
20 x 4 Line Alphanumeric LCD with Backlit
16 Soft Touch Membrane Type Keys
Extremely Useful for Pharmaceutical Labs
Independent programmable setups for Time & Count Mode with Storage
Password-protected user access
Facility to attach with weighing balance
Automatically calculates percentage friability
Loading and unloading of tablets without removing drums
Power Failure Detection Facility
User friendly operation with menus & current status indicators
USB Interface available

Note : Appearance & Specifications are subject to change due to continuous development.

Technical Specifications Of Digital Friability Test Apparatus: VSI-16

Test Methods	Time and Count Mode
Speed of Drums	20 – 60 RPM +/- 0.5 RPM
No. of Drums	2
Display	20 x 4 Line Alphanumeric LCD with Backlit
Keyboard	16 Soft Touch Membrane Keys, Alphanumeric Mobile Keypad
Counter	1 to 9999 rotations
Timer	1 sec to 9hr 59min. 59 sec.
Type of Drive	Direct Drive with Stepper Motor
Printer	Parallel Printer
PC Connectivity	USB Interface available
Storage	200 Samples reading with batch number and sample number
Power Supply	230V +/- 10%, 50 Hz AC
Size (WxHxD)	335 x 330 x 340 mm.
Weight	12 Kg.

Additional Information

Port of Dispatch Mohali
Delivery Time Ready Stock or within 7-10 days
