CM-21 VibroMeter, Display Type : Digital

Listing ID #6243851

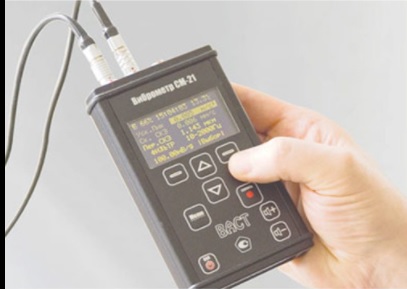

Vibrometer CM-21

With stethoscope, pyrometer, tachometer functions

Vibration and operation parameters are the most frequently measured magnitudes for the condition monitoring

applications. Multifunctional vibrometer CM-21 allows all these measurements.

CM-21 is used for periodic monitoring of vibration according to ISO 10816 in all standard frequency bands.

Additionally it allows measurements of additional parameters for condition monitoring in rotating machines.

These are high frequency vibration levels, temperature, peak factor.

CM-21 Specifications

Sensors

Types of sensors

External: accelerometer,

Tacho probe

Integrated: pyrometer

Vibration

Magnitude Displacement, Velocity, Acceleration

Detector

RMS, peak, peak-peak,

peak factor (true peak divided by RMS)

Frequency range 0,5 - 25600 Hz

Accuracy + 5%

Passbands for vibration Measurements:

- ISO 10816 standard 2..1000, 10..1000, 10..2000 Hz

- additional

10-5000Hz

6.4 - 25 kHz, 10 - 25 kHz, 15 - 25 kHz

Combined Low + High frequency band

50-300Hz + 8-10 kHz

Temperature

Range from -40 C up to +350 C

Accuracy +/ - 4 C

Stethoscope

Volume Adjustable in 9 steps

Audio output Vibration signal

Headphones 3.5 mm jack connector (advanced kit)

Rotation speed

RPM range 60 40000 rpm

Accuracy + 1%

Tacho probe range Up to 200 mm

General

Display

128X64OLED, can work at freezing

temperatures

Keypad membrane, tactile effect

Data exchange USB

Data storage More than 10000 measurements

Route hierarchy Machine, Measurement point, Direction

Environmental protection IP65

Working temperatures - 20 up to +70 C

Weight 300 gramms.

Dimensions

126 80 24 mm excluding external

sensors. pocket size

Working time from batteries 10 hours (1750 mAh battery)

Battery type Internal Li-Ion 1750 mAh

Charging time 2 hours mains supply charger,

8 hours from USB port
