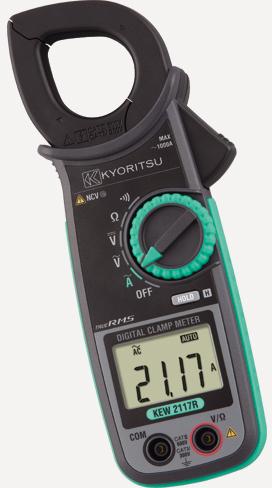

KYORITSU Clamp Meters Kew 2117r, Display Type : Digital

Listing ID #3913837

Get Latest Price

MOQ 1 Piece(s)
Weight220g Approx. (including batteries)
Brand NameKYORITSU
Display TypeDigital
Dimension204(L) × 81(W) × 36(D)mm
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Weight 220g Approx. (including batteries)
Brand Name KYORITSU
Display Type Digital
Dimension 204(L) × 81(W) × 36(D)mm
Power Source R03/LR03 (AAA) (1.5V) × 2
Applicable standards IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2
Ω 600.0Ω/6.000/60.00/600.0kΩ (Auto-ranging)
Included Accessories 7066A (Test leads)
DC V 60.00/600.0V (Auto-ranging)
Continuous measuring time Approx.170 hours
Conductor size Ø33mm max.
AC V 60.00/600.0V (Auto-ranging)
AC A 60.00/600.0/1000A (Auto-ranging)
Continuity buzzer 600Ω(Buzzer sounds below 90Ω)
Optional Accessories 8008 (Multi-Tran)

Fully Safety jaw
Ergonomic over-molded body gives convenient one-hand operation
Large easy-to-read display with 0.01A resolution
Accurate reading with True. RMS 60/600/1000A auto-ranging
Long battery life
Safety Standard IEC. 61010-1 CAT IV 300V / CAT III 600V

Clamp Meters Kew 2117R

AC A	60.00/600.0/1000A (Auto-ranging) ±1.5%rdg±4dgt [45 – 65Hz] ±2.0%rdg±5dgt [40 – 1kHz]
AC V	60.00/600.0V (Auto-ranging) ±1.0%rdg±2dgt [45 – 65Hz] (600V) ±1.5%rdg±4dgt [40 – 1kHz] (60/600V)
DC V	60.00/600.0V (Auto-ranging) ±1.0%rdg±3dgt (60V) ±1.2%rdg±3dgt (600V)
Ω	600.0Ω/6.000/60.00/600.0kΩ (Auto-ranging) ±1.0%rdg±5dgt (600Ω) ±2.0%rdg±3dgt (6/60/600kΩ)
Continuity buzzer	600Ω(Buzzer sounds below 90Ω)
Conductor size	Ø33mm max.
Applicable standards	IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2(EMC), IEC 60529 IP 40, EN50581(RoHS)
Power source	R03/LR03 (AAA) (1.5V) × 2
Continuous measuring time	Approx.170 hours (When R3 is used)(Auto power save : approx. 10 minutes)
Dimensions	204(L) × 81(W) × 36(D)mm
Weight	220g Approx. (including batteries)
Included Accessories	7066A (Test leads) 9079 (Carrying case), R03 (AAA) × 2, Instruction Manual
Optional Accessories	8008 (Multi-Tran)
