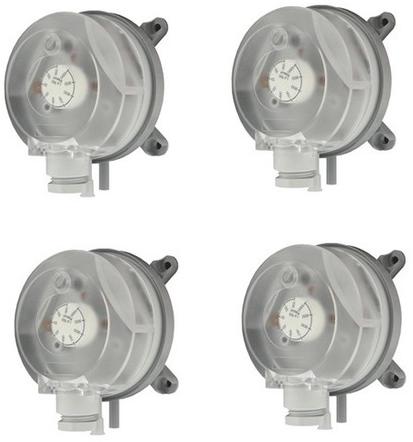

Differential Pressure Switch DP 930
Model : DP930
Media : Air Gases
Enclosure : ABS
Wetted Parts : Silicone
Range : 0 to 4kPa
Accuracy : ±2% of F.S
Electrical Rating : 2A, 250V AC
Special Features :
High Quality, Low-Cost
Visual Set Point Indication
Hassle-Free Field Adjustment Knob
2% Repeatability
Description :
The DP930 Differential Pressure Switch is a low-cost easy to use switch for very low pressure applications. The switch can monitor positive, negative, or differential pressure and with an easy to adjust set point knob makes field set up and adjustment hassle free. The differential pressure switch includes a SPDT relay rated for 1A @ 250V and can be set as low as 0.08” w.c. (20 Pa)
Specifications :
Media : Air and compatible gases
Max Pressure : 40” w.c. (10KPa)
Temperature Limits : 5 to 140° F (-15 to 60° C)
Electrical Rating : 2A @ 250 V
Electrical Connectio : Screw terminals
Process Connection : 316” I.D. flexible tubing
Enclosure Rating : NEMA 13 (IP 54)
Weight : 3.5 oz (100 g)
Accessories : 6 ft (1.8m) flexible tubing (2) Static pressure
fittings Z type mounting bracket Mounting screws
Repeatability : 2%
Deadband : approximately 10% of max set point
