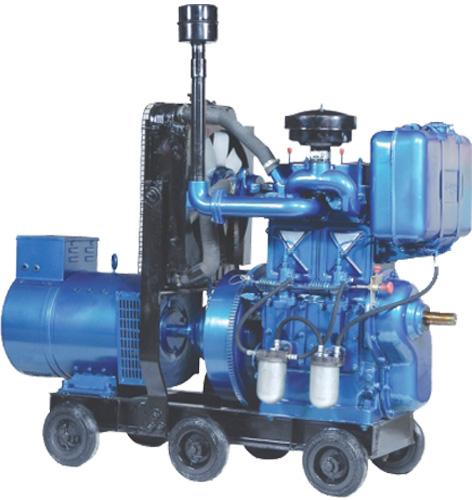

Diesel Welding Generator

Listing ID #3467896

Get Latest Price

Frequency50/60 Hz
Welding current range50-200 Amps
Domestic supply capacity2.5KW/230V/60V Volt
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Salient features

four state welding voltage regulator
low or high current usage switch
natural protection for undesirable situations
significant for all-around rugged preservation
additional protection against output devastation
heavy-duty, field-provide architecture for long life
hand cranking as well as 12 volt electric start alternative
a. C. Welding current sufficient to run 2.5 to 5 mm electrode gently
a lot of operations! grinder, work lights, pump, motor starting, or emergency power
excellent welding quality, uninterrupted welding arc & continuous use with out break
designed in semi brushless technology and modern weldart technology is used for long life

Specification	Unit	CWG-40AD
Domestic supply capacity	Volt	4.0KW/230V/70V
Phase	No	1
Frequency	Hz	50/60
Diesel engine rating	HP	20
Cylinder	No	Double
Welding current range	Amps	60-400
Rated voltage	Volt	85
Speed	RPM	1800
Fuel	Type	Diesel
Fuel consumption	l/h	1.8
Fuel tank capacity (litre)	l	14
Start	Type	Handle start (optional electrical)
Insulation	Class	H
Wire	Type	100% copper
Suitable electrode diameter	mm Φ	2.5, 3.2, 4, 5 and 6
Cooling	type	Air and water
Dimensions (LxWxH)	mm	1590x660x1230
Weight (approx)	Kg	410
