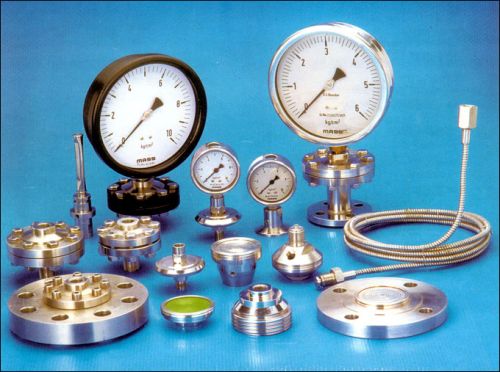

Diaphragm sealed pressure gauges

Listing ID #4051044

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

MASS make Diaphragm Sealed Pressure Gauges are designed to measure the corrosive fluids pressure, where suitable material for bourden tube is not available.
The Diaphragm assembly withstand various corrosive actions encountered and seals the Bourdon tube from the process fluid. The displacement of the liquid filled in the Bourdon tube, through movement of the diaphragm, transmits the process pressure to the gauge. The Diaphragm sealed connections are available with threaded type, flanged type and capillary type mountings.

ifferent type of Chemical Seals can be provided such as :

Flange-type diaphragm seals
Cell-type (sandwich) diaphragm seals
Flange-type seals with extended diaphragm
With hygienic-type connection
- SMS standard
- Tri clamp fitting
Pulp and paper industry design
High pressure diaphragm seals, homogeniger flange
Welded body, male thread
Capsule-Type Chemical Seals

PRESSURE GAUGE END
Dial Size	63mm, 100mm & 150mm
Accuracy	11% of thef.s.d.
Bourdon material	Phosphor bronze / AISI 316 SS
Socket	Brass/S.S. 304/S.S. 316
Movement material	Brass/S.S. 304/S.S. 316
Case & Bezel	Die Cast Aluminium Weatherproof housing, with screwed outer bezel, stoved enamel black finish. AISI 304 SS / AISI 316 SS Polished case and snap action bezel.
Extra fitments	Micro Zero Adjustment Pointer Neoprene blow out disc.
SEALED UNIT END
Upper Chamber Material	Mild steel painted in black / S.S. 304 / S.S. 316
Diaphragm Material	S.S. 316 / MONEL / HASTELOY - C / TENTALUM or any special material, if needed teflon sheating can be provided.
Lower Chamber Material	S.S. 304 / S.S. 316 / MONEL / HASTELOY - C / TENTALUM or any special material.
Connection	Threaded or flanged or flexible SS capillary can be provided.
Sealing liquid	Silicone Oil or suitable liquid as desired by the user. DC-704, 710, FS 1265, Halocarbon.
Temp. Limit	45° C to 250°C Max. For high temp, go for cooling tower assembly - impulse tubing or capillary extension.

Company Details

'MASS' primarily addresses the EXPORTS & PROJECTS based industries both in India and abroad. 'MASS' is one of the widely accepted brand across the world. 'MASS' is in fact becoming the symbol for precise solution in Process & Engineering industries. 'MASS' Pressure and Temperature gauges are recognized even by competitors, as being the most reliable product available in this market segment.
We have come a long way in these past years by continues improvement and innovation programmes. Extensive Research and Development activities has allowed us to introduce added new products like Bi-metal gauges, Differential gauges, Hygienic gauges etc.
Beyond adding new products, 'MASS' has continuously been setting new standards in quality. Providing an out-standing quality is our responsibility. 'MASS' is committed to provide excellent product with utmost customer satisfaction. Individual Testing and Calibration of each & every gauge before it leaves the factory has brought down the rejection ratio to five out of every 1000 gauges sold. This led us to take the boldest step in future and probably for the first time in the history of this industry, 'MASS' offered an extended warranty of 12 months on pressure gauges.
The rest is history as today 'MASS' PRESSURE & TEMPERATURE GAUGES are on application in virtually every industry through out. High investments in technology have resulted in our ability to offer solutions to most of the applications involving extreme conditions like very high temperature or pressure.
At 'MASS' we are driven towards Customer satisfaction and determined to exceed Customer expectations.
