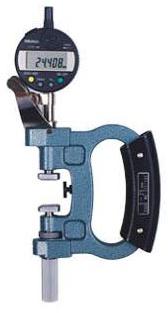

Contact SupplierOur Dial Snap Gauges are based on relevant standard specifications. The body of the Dial Snap Gauges is manufactured in graded aluminum casting, which ensures the light weight and handy frame. Measuring spindle and anvil spindle are manufactured out of graded steel. These spindles are hardened and ground including screw threads. Carbide ground and lapped tip of measuring faces ensures the maximum wear resistance. The lever is provided for lifting of the movable anvil for easy insertion of the job. The constant measuring force, which is result of built in spring, eliminates the personal error in checking. These Dial Snap Gauges are very useful in measuring precise diameters, thicknesses, lengths, grooves, gear tooth width, PCD of gears with inter changeable anvils. Caters To
Models | Range in mm |
---|---|
M25 | 0-25 |
M50 | 25-50 |
M75 | 50-75 |
M100 | 75-100 |
M125 | 100-125 |
M150 | 125-150 |
