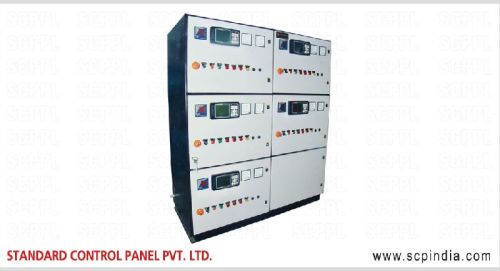

Dg synchronizing panel

Dg synchronizing panel

Listing ID #3831304

Get Latest Price
  • Operational Voltage110/230v 415v AC
  • Feeder ConfigurationSemi Drowout or Fix Type
  • Short Time Current50KA for 1Sec, 105KA peak
  • System3 Phase, 3 or 4 wire, 50Hz
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

Standard Control Panel Pvt. Ltd.
Dhandari Kalan, Ludhiana, Punjab
View Number
  • Member Since 9 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

  • Form of Sepration Upto 3B/4B (Optional Type 5)
  • Degree of Protection IP42-IP54
  • Applications Control, Synchronizing, Load Sharing/Load management of DG Sets through control relay with aor without PLC based cum manual
  • Short Time Current 50KA for 1Sec, 105KA peak
  • Bus Bar Aluminium or Copper
  • Feeder Configuration Semi Drowout or Fix Type
  • System 3 Phase, 3 or 4 wire, 50Hz
  • Rated Insulation 1000v
  • Operational Voltage 110/230v 415v AC
  • Ambient Temperature 45 Deg C
  • Rated Service Voltage 690v
  • Ref. Standard IEC61439-12009, IS:8623
  • Bus Bar System Interleaved above 1600A
  • Type Tested for Short Time Current withstand Temperature Rise Degree of Protection
  • Rated Current Upto 6300 Amps

We are actively engaged in manufacturing and export of high performance DG Synchronization Panel which comes complete with Controlling & Protection Relays capable of synchronizing of more than one DG sets / with Mains & DG and with necessary protections. The offered product is precisely designed and manufactured by utilizing optimum quality raw material and sophisticated technology. Furthermore, we offer this DG Synchronization panel in various technical specifications at affordable prices.


Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

Standard Control Panel Pvt. Ltd. which is situated in Ludhiana (Punjab) based firm and is CPRI Approved & ISO 9001:2008 certified company & CE certified company. We have experience in manufacturing the control panels since 1994. SCP's strategy is to innovate control panel designs to constantly improve electrical control panels and deliver a steam of new electrical products that give greater productively and customer satisfaction.
Through our efforts in achieving control panels engineering excellence, we have established a well equipped panels manufacturing unit, powder coated control Panels along with proper power control panels testing setup. We are also providing copper tin coated bus bar if required by the client. We have been of help to our customer, in designing of power distribution control panels for their industrial electricity load requirements.
