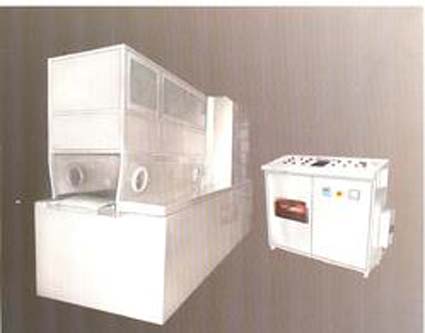

Depyrogenation Tunnel

Listing ID #4081540

We are one of the famous manufacturers, suppliers and exporters of a wide range of Depyrogenation Tunnel

We are engaged in providing various types of Pharmaceutical Depyrogenation Tunnels, which are used in food & beverages, cosmetics, pharmaceutical and industries across the country. As per FDA Norms and cG.M.P parameters, our tunnel is specially designed. This completely automatic tunnel has PLC and printer online.

The Tunnel is comprised of fine units:

The cooling zone
The stabilizing zone
The infeed drying zone
The control panel
The sterilizing zone

The infeed drying zone:
Between vial washing and sterilizing chamber, the drying zone creates thermal barrier to protect the vials from contamination and pre heat the vials. For some hot air, the pressure difference is adjusted to flow from sterilizing zone to drying zone. Hence, drying and pre heating of the vials take place.

The sterilizing zone:
Up to temperature of 350 Degree C, the sterilizing zone can be heated. Heat is generated with the help of Incoly DS material heating elements. The function of the air temperature and air velocity is sterilizing time of the vials. The air velocity can be adjusted. To obtain a Log-3 pyrogen reduction, the thermal cycle is designed.

The cooling zone:
Vials enter into cooling zone from sterilizing zone where they are subjected to cold laminar air for lowering the room temperature. Through exhaust blower fitted down the belt, the hot air can be exhausted.

The stabilizing zone:
To maintain negative pressure in washing room and filling room, the stabilizing zone with cold laminar air flow stabilizing zone is used

The control panel:
The Control panel is completely automatic and has Printer On Line and PLC with Sterilizing Temperature Indication. For higher thermal efficiency & power saving, thyristoristed temperature control unit is used.

Model: With belt width 300mm, 450 mm,600 mm, 750 mm , 900 mm & 1200mm.

Output capacity: 90-300 vials/min

                             100-300 Ampoules

                             Min 60-100 Bottles / Min as per Bottle size

Application: Pharmaceuticals,Food,Chemicals Industries

salient Features:

*Stericlean hot laminar flow sterilization tunnel used for on line sterilization & depyrogenation for washed vials & ampoules,

*class-100 laminar air flow Throughout drying, sterilizing, cooling & stabilizing zone.

*Thyristorised temperature control for excellent power saving & thermal efficiency with uniform temperature in hot zone.

* Automatic control through IC and on line printing
