Demister Pads

Listing ID #3720335

Demister pads, Fine Filters" Compressed Air Gas Filters consist of a two-stage separation-cum-filtration process.
Typical Applications include filtration of compressed Air N2 CO2 Cl2 Natural gasSO2NH3 etc.

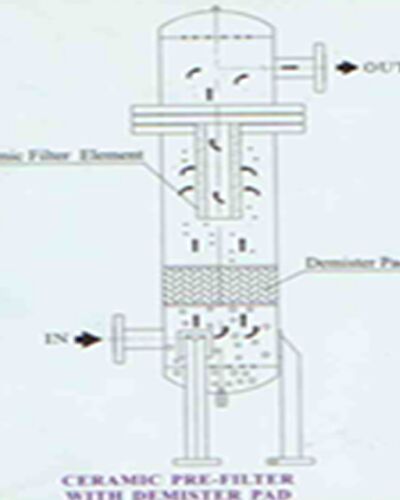

In the first stage, the airgas passes through a carefully positioned Demister Pad placed above the inlet nozzle.
The Demister Pad is made of knitted St. Steel wire loops with symmetrical interlocks. Due to the high free volume and large impingement area, it has a very low pressure drop. As the airgas passes through the pad, the liquid droplets contact the large wire surface area and due to the greater inertia, they are held back. As more and more droplets collect, they coalesce and grow in size and then fall back in the drain sump due to gravity.
