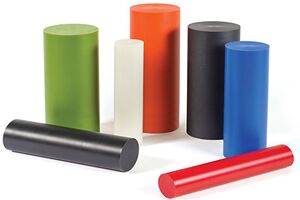

DELRIN RODS SHEETS and COMPONENTS

Listing ID #4347683

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Petrorays brings to you high grade Polyacetal sheets, plates and rods. These are among the strongest and stiffest of all thermoplastics. Polyacetal (Derlin) rod and sheet plastic materials are have....

View More Details

Send Enquiry

Product Details

Petrorays brings to you high grade Polyacetal sheets, plates and rods.

These are among the strongest and stiffest of all thermoplastics.

Polyacetal (Derlin) rod and sheet plastic materials are have good fatigue life, low moisture, good electrical properties sensitivity and high resistance to solvents and chemicals. We are manufacturers, suppliers, and exporters of delrin rods in Mumbai, India to all over the world.

Polyacetal - POM is a semi crystalline engineering plastic that is beneficial to engineering applications & is suited to CNC machining

In polyacetal Homo Polymer and Copolymer grades are available including an enhanced bearing grade material.

Polyacetal Co-polymer(POM-C) : is more resistant against strong alkalis and thermal oxidativedegradation than the homo-polymer (POM-H).

Polyacetal Homo-polymer (POM-H) : has superior mechanical strength, better wear resistance, is more stiff, and creep resistance and has lower thermal expansion rate as compared to polyacetal copolymer (POM-C).

Properties

High tensile strength, impact resistance and stiffness.
Outstanding fatigue resistance.
Outstanding resistance against automotive fuels, Lubricants, Solvents and many neutral chemicals.
Excellent dimensional stability.
Very Good electrical insulating properties.
Excellent Mechanical properties.
Low co-efficient.

Application

Railways :Pedestal Liner, Bush, pinion, wear pad.
Paper mills :Dryers Gears, Liner, Bush, Pulleys, Rollers.
Sugar Mills :Mill bush, liner, Wear plates, pulley, wear pads.
Cement Plants :Ropeway pulley, Uncoupling wheel, bush.
Textile Ind. :Bevel Gears, Bearings, Bushes.
Tyre Ind.:Guides, Bush, Gear, Bead Separator.
Steel Plants :Slipper pads, Bearings, Gear, Insert.
Chemical Plants :Wear pads, Scrapper.
Automobiles :Wear pads, Rings, Brush, Washers.
Bottling Plants :Star wheel, Guides, Sprockets.

PROPERTIES	ASTM	POM-POLYACETAL
Specific Gravity	D792	1.41
P.S.I. Tensile Strength	D638	8800
% Elongation	D638	40.75
P.S.I. Comprehensive Strength	D695	16000 (10% defl.)
Impact Strength(1/2" x 1/2" notched)	D256	1.0-1.5 (1/2" x 1/2" Bar)
Hardness Rockwell	D785	M78-M80
10⁵ P.S.I. 73^o F Flexural Modules	D790	3.75
Coefficient of friction	-	0.18
-10⁴ cal sec cm³ C cm Thermal conductivity	D177	5.5
Thermal expansion 10⁵per ^oC	D696	8.5
Resistance to heat ^oC (Continuous)	-	80^oC to 120^oC
Ω - cm (23^oC 50%) Volume resistivity	D257	10 x 10¹⁴
1/8 in thickness volts mil Dielectric strength	D149	500 (90 Mil)
1 KHz Dielectric constant	D150	3.7
1 KHz Dissipation (power) factor	D150	0.0010 (40mil)
24/j3.2 mm % water absorption 24hr. 3.2 thickness, %	D150	0.22
in mm Burning rate	D570	1.0 - 1.1
Effect of weak acids	D635	Resistant to some
Effect of weak acids	D543	Attacked
Effect of weak alkalies	D543	Attacked
Effect of organic solvents	D543	Excellent resistance to practically all solvents.

Company Details

Established in 1986, under the able guidance of Mr. Vinod T. Gopani we have gained a rich experience in offering precisely engineered products and excellent after sales services which live up to the ethical business policies of the firm.
We, at Petrorays Products Co, offers High Quality Engineering Plastic like:
PTFE
UHMW-PE
Nylon (PA)
Poly Propylene (PP)
Cast Nylon
PEEK
Poly-Acetal (Delrin) (POM)
Poly-Urethane (PU)
Our products are recognized for easy installation, fine quality, heat resistance, flexibility, perfect finish, high tensile strength, low maintenance, high pressure & excellent compression, confirming to the various industrial norms and standards. Our qualified engineers are manufacturers, suppliers and exporters of ptfe, teflon, adhesive, tape, fabric and cloth in Mumbai India to worldwide. We offer a wide assortment of customized products, at market leading prices to numerous industries, adhering to the quality parameters followed in the industry.
