Degree Elbow

Listing ID #3824576

Get Latest Price

Dimension:
ANSI B 16.11 / BS3799Size
Sch 80, Sch 160, Sch XXS.Class
:NPS 1/8″-4″(Dn6-Dn100)
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

: NPS 1/8″-4″(Dn6-Dn100)
: 3000 LBS, 6000 LBS, 9000 LBS
Sch 80, Sch 160, Sch XXS. Class
ANSI B 16.11 / BS3799 Size
Schedule :
Form :
Dimension :

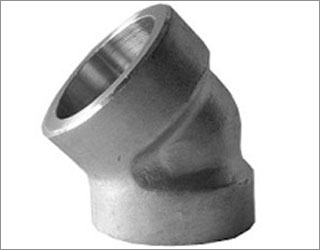

Fastwell Engineering Pvt Ltd. are Manufacturer, Exporter and Supplier of Socket Weld 45° Elbow. Fastwell Engineering Pvt. Ltd. are largest pipe fitting manufacturer for all type of industries in India. The whole manufacturing process is subject to a 100% quality control. ASME B16.11/BS3799 Socket Weld Fittings 45° Elbow Available in different dimensions and specifications.

NPS	Socket Bore	Depth Socket	Bore diameter	Socket wall thickness	Body wall thickness	Center to bottom of socket A
NPS	B	J	D	C	G	45°
1/2	21.95 21.70	10	16.6 15	4.65 4.10	3.75	11.5
3/4	27.30 27.05	13	21.7 20.2	4.90 4.25	3.90	12.5
1	34.05 33.80	13	27.4 25.9	5.70 5.00	4.55	14
1¼	42.80 42.55	13	35.8 34.3	6.05 5.30	4.85	17
1½	48.90 48.65	13	41.7 40.1	6.35 5.55	5.10	21
2	61.35 61.10	16	53.5 51.7	6.95 6.05	5.55	25
2½	74.20 73.80	16	64.2 61.2	8.75 7.65	7.00	29
3	90.15 89.80	16	79.5 46.4	9.50 8.30	7.60	31.5
4	115.80 115.45	19	103.8 100.7	10.70 9.35	8.55	41.5

Class 6000

NPS	Socket Bore	Depth Socket	Bore diameter	Socket wall thickness	Body wall thickness	Center to bottom of socket A
NPS	B	J	D	C	G	45°
1/2	21.95 21.70	10	12.5 11	5.95 5.20	4.80	12.5
3/4	27.30 27.05	13	16.3 14.8	6.95 6.05	5.55	14.5
1	34.05 33.80	13	21.5 19.9	7.90 6.95	6.35	17
1¼	42.80 42.55	13	30.2 28.7	7.90 6.95	6.35	21
1½	48.90 48.65	13	34.7 33.2	8.90 7.80	7.15	25
2	61.35 61.10	16	43.6 42.1	10.90 9.50	8.75	29

Nominal pipe size DN		Center to End						Outside Diameter D			Wall Thickness			Length of Thread(min)
		A						D			Cmin
		90°Elbows			45°Elbows			D			Cmin
A	B(in)	2000LB	3000LB	6000LB	2000LB	3000LB	6000LB	2000LB	3000LB	6000LB	2000LB	3000LB	6000LB	NPT	Rc
A	B(in)	Sch80	Sch160	XXS	Sch80	Sch160	XXS	Sch80	Sch160	XXS	Sch80	Sch160	XXS	NPT	Rc
6	1/8	21	21	25	17	17	19	22	22	25	3.0	3.0	6.5	6.5	6.5
8	1/4	21	25	29	17	19	22	22	25	33	3.0	3.5	6.5	8.0	10.0
10	3/8	25	29	33	19	22	25	25	33	38	3.0	3.5	7.0	9.0	10.5
15	1/2	29	33	38	22	25	29	33	38	46	3.0	4.0	8.0	11.0	13.5
20	3/4	33	38	44	25	29	33	38	46	56	3.0	4.5	8.5	12.5	14.0
25	1	38	44	51	29	33	35	46	56	62	3.5	5.0	10.0	14.5	17.5
32	11/4	44	51	60	33	35	43	56	62	75	4.0	5.5	10.0	17.0	18.0
40	11/2	51	60	64	35	43	44	62	75	84	4.0	5.5	11.0	18.0	18.5
50	2	60	64	83	43	45	52	75	84	102	4.5	7.0	12.0	19.0	19.0
65	21/2	76	83	95	52	52	64	92	102	121	5.5	7.5	15.5	23.5	29.0
80	3	86	96	106	64	64	79	110	121	146	6.0	9.0	16.5	26.0	30.0
100	4	106	114	114	79	79	79	146	152	152	6.5	11.0	18.5	27.5	33.0
