With the help of hard working professionals, we are engaged in manufacturing and supplying of Decade Megohm Box.Rotary switches used in this box are anufactured using sophisticated machinery and advanced technology in accordance with predefined quality standards and guidelines. Offered box is highly demanded as it gives accurate result as compared to other decode boxes. Provided boxes are tested on various parameters to ensure its functionality. Additionally, we provide this Decade Megohm Box to clients at rock bottom prices.

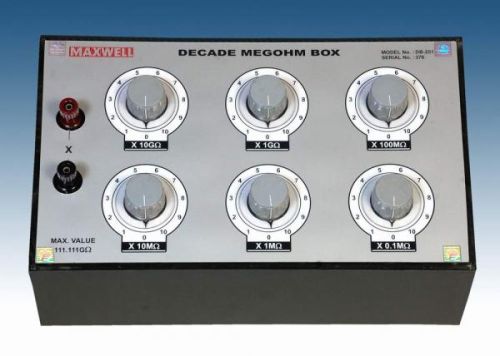

DECADE MEGOHM BOX               (Model No. DM -251)

*    Portable, Stable Reading & most suitable for Meggar  Testing.

*    Resistance Range : 0.1 MW  To 111 GW  at  5000 V

      in 6 Decades X 0.1,1,10,100 Megohms, 1G & 10 Geg ohms

*    Rated Max. Voltage : 1000V from 0.1 To 100 Mega ohm

      & 5000V for 100 Megohm  and  Above.

*   Dials of 0.1 M, 1M & 10 Megohms can also be used at 5000V when they

     are connected in series with high value dial.

*   Accuracy :  ± 5%          *   Power Rating : 1 Watt at  + 50°C.

*   Switches:  Specialy designed  with thick Fibre glass sheet &

     nickel  plated contacts.

*   Provision for  dehumidifier is in-built in the acrylic box & you

   can have stable readings even in rainy season.
