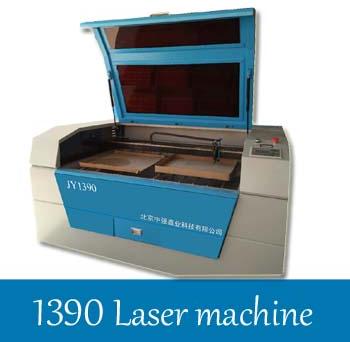

Laser engraving and cutting machine 1390
parameters
working size :1300*9001200*8001000*600600*400
laser type :dc glass laser tube
wavelength :10.7um
laser power :40w, 60w, 80w, 100w, 130w, 150w
engraving speed :0-1200mms
cutting speed :0-600mms
reposition accuracy :â�¦â±0.01mm
cooling system :water cooling system
control system :digital offline control system
drive :stepper motor
supported format
and software :plt, dst, dfx, dwg,al,las support auto cad, corel draw output directly
minimum letter size :chinese: 1.5mm english: 1mm
working power :ac200v110vâ±10% 50hz60hz
machine power :�1500w
working environment:temperature:0-45c humidity: 5%-95%
motorized up and
down working table :high precision ball screw transmission, max lifting 300mm.
features
1.practical model for primary customers.
2.user-friendly interface, easy to master for operation.
3.parallel light beam design, lessen path deviation, high performance, easy adjustment.
4.aluminum alloy knife strip working table, ensure high quality cutting.
5.digital offline control system, usb available, rd and lettro alternative.
6.optional red light positioning system and water chiller for better work performance.
applications
1.suitable for small area craft processing. Engraving varies graphics and letter on double color board wood, bamboo, organic glass, leatheretc.
2.suitable for engraving non-metal materials, all kinds of stamp, like horn, wood, red plastic, acrylic etc.
3.carve name, model, label, design and date on electronic parts.
4.cut acrylic and organic glass.
