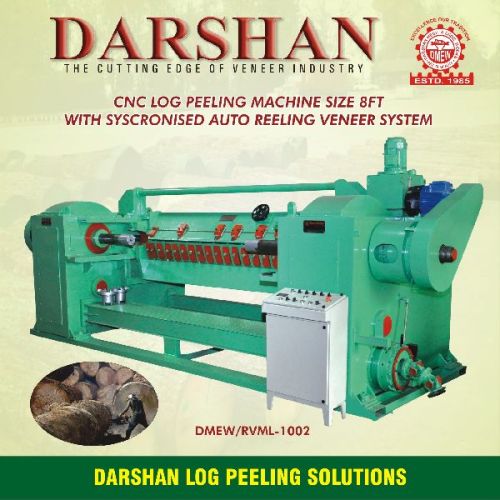

DARSHAN Face Veneer Lathe Machine

Listing ID #191198

darshan mechanical & engineering works is one of the well reckoned manufacturers, exporters & suppliers of 8' face veneer lathe machine. darshan rotary veneer hydraulic pneumatic back-up-role gear drive lathe108” size, model dmew drvhpbgdl-1001 is equipped with heavy duty caste iron knife holder & pressure bar as well as heavy duty mild steel iron fabrication body. features and technical data :

• knife length : 2750 mm
• swing dia : 1500 mm
• minimum log length : 1900 mm
• minimum end core : 75-85 mm
• maximum spindle rpm : 150
• power h.p 85 with gear box
• power h.p 105 with ac drive
• veneer thickness : 25 - 3.50
• l&t brand electrical panel
• heavy duty caste iron knife holder & pressure bar
• heavy duty m.s iron fabrication body
• all shaftsspindles en series
• hydraulically operated backup roll
• hydraulically operated feed mechanism
• disc drive brake clutch system
• air compressor
• power pack
• auto lubrication system through coolant pumps
