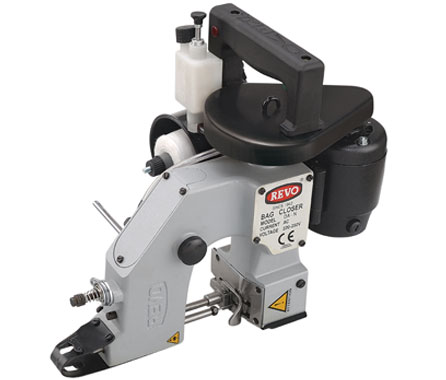

Contact SupplierRevo® Bag Closer Sewing Machine - Single Needle, Single Thread DA-R
Revo® DA is a single-thread chain-stitch portable filled bags closing sewing machine. This robust machine stands up to the most demanding sewing jobs on all types of paper, textile and poly bags made from HDPE/PP, etc. It is simple to operate, even for inexperienced users. The reinforced feed mechanism consisting of wider presser foot and feed dog with a bigger throat plate than conventional single thread chain-stitch bag closing machines helps achieve smoother, even and better looking plain and folded top closures.
Revo® bag closing machine housing is cast and machined to close tolerance and the parts undergo suitable heat treatment processes making them wear resistant, thus reducing downtime and repair costs. This machine is dependable even under the most adverse operating conditions in an agricultural or industrial environment.
Â
Following features and benefits allow Revo® bag closing machines to handle the toughest bag closing jobs with reliable performance:
Revo® portable bag closing machines are suitable for closing all kinds of small to large bags used for chemicals, fertilizers, animal-feed, food grains, food products etc.
DA bag closing model is also available without pump lubrication, Model D.
Revo® has been manufacturing bag closing machines since the 1950's and because of our belief in Infrastructure, durability and performance, more than 500,000 bag closing units have been sold worldwide.
SEWING SPEED : Efficient production: Maximum sewing speed 1600-1800 stitches per minute
DIMENSIONS : 12in. H x 12in. W x 13in. D (30 cm x 30 cm x 33 cm)
STITCH LENGTH : 3.5 stitches/inch (25.4mm) Fixed
MAXIMUM MATERIAL THICKNESS : 10mm
CUTTER TYPE : Mechanical
THREAD : 8oz. Cotton or Synthetic thread cones.
NEEDLE SIZE : DB X 1 200/25 Groz-Beckert
POWER REQUIREMENTS :220V
WEIGHT : 6 kg.
TYPE OF STITCH : Single thread/chain stitch
CLOSING-SPEED : 5 - 8 sec/bag, 39 fpm at 3.5 stitches/inch (25.4mm)
TYPES OF BAGS : All kinds of multi-wall paper, kraft-paper, burlap, cotton, PP/PE, Hessian, woven polyester, jute bags etc
LUBRICANT : For extended lubrication and wear, use SAE 30 Oil
