D.C. SYSTEMS

Listing ID #3891834

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

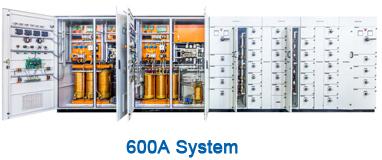

D.C. Systems comprising of Battery and Battery Chargers upto 500KW Float & boost or float cum boost, constant voltage & constant current, thyristor controlled, upto 500 kW rating, suitable for lead acid, SMF, or Ni-Cd batteries ranging from 20 AH to 5000 AH and 12 V to 220 V or any custom made range. Resistive Load Banks for Battery Discharging Rectifiers (500 kW).

TYPE

Float charger
Float cum Boost charger with voltage dropping diodes/voltage regulator
Float and Boost charger
Redundant Float or Float cum Boost Charger
Tailor made scheme as per customer requirement

FEATURES

Fully automatic electronic SCR controlled
Output short circuit proof
Liberal design margins and safety factors
Voltage drooping characteristics for Float charger to pass on momentary or short time over loads to battery
Soft start feature to minimize inrush current to battery when charger is re-energized
Battery Test Function (optional):
With this function, Battery healthiness & battery discharge path can be checked ONLINE. In case there is any problem in battery or discharge path, the float charger shall feed the load which is in "Support mode" without any interruption to the load. This feature helps to ensures the availability of back-up from battery & avoids the uncertainty.
Temperature Controlled Charging (optional)
The voltage of battery cell varies with temperature which affects the amount of charge to the battery. Temperature sensor is installed at the Battery bank to measure the ambient temperature of the battery, this measured signal is sent back to the Battery Charger via a feedback loop to adjust the charging voltage accordingly. This feature offer optimum charging of the battery over the operating ambient temperature range Remote signalling for critical faults (optional).

RATING

12V, 24V, 48V, 110V, 220V or any custom made up to 500KW suitable for Lead Acid Flooded, SMF (VRLA), Ni-Cd Batteries and Lithium–Ion Batteries

APPLICATION

For Switchgear Protection
Instrumentation power supply
Telecom / Infocom
Power Plant and Substation
Railways
Fire Fighting system
D.G. set starting

Company Details

MASS TECH was established in the year 1993 by Mr. Subhash Patil, who is an electrical engineer with the specialization in Industrial Electronics & Micro Processor control application. Over the years, Mass-Tech has established itself as leading manufacturer of Industrial battery chargers and control panels.
Mass-tech Controls Pvt. Ltd. are manufacturers of DC UPS comprising of Battery Charging Equipment's, DC Distribution Boards, DC-DC Converters, Polarization Rectifiers, Cathodic Protection, LV Switchgear Panels and allied equipment's required for no break DC supply system for power station applications, refineries, petrochemicals, process industries, etc. along with of batteries of various types, viz. Ni-Cd, lead acid, SMF VRLA type, Lithium ion battery, etc.
Masstech is an ISO 9001-2008 certified by International Certification Services accredited by Joint Accreditation System of Australia & New Zealand.
