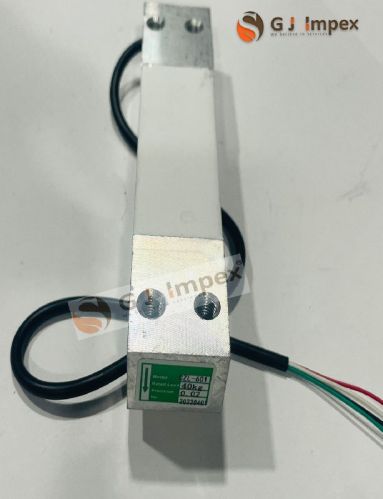

CZl601 Aluminium CZL-601 Load Cell, for Industrial Use

Listing ID #828897

125 - 150 / piece
Get Latest Price
  • MOQ 10 Piece
  • Country of OriginIndia
  • TypeLoad Cell
  • MaterialAluminium
  • ApplicationIndustrial Use
  • Supply Type Manufacturer, Exporter, Retailer, Importer
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 10 Years
  • Nature of Business Supplier
  • Year of Establishment 2013

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Country of Origin India
  • Type Load Cell
  • Material Aluminium
  • Application Industrial Use
  • Output 2mv
  • Rated Load 40kg
  • Brand Name CZl601

Rated Load (Kg) : 3, 5, 6, 10, 15, 20, 30, 40, 50, 60, 80. We are a prominent Exporter, Importer and Supplier of Load Cell Czl 601. Load Cell (CZL-601) is made of alloy aluminum. Load Cell (CZL-601) is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. Load Cell (CZL-601) is best suited for electronic table top scale, floor scale and other weighing equipment.


Standard Specification

Nominal Output

2.0 + 0.1 mv/v (mili Volt per volt)

Precision

C2/C3 (0.017% & 0.02% FSO comprehensive error)

Excitation Voltage

9 VDC – Maximum 12 VDC

Platter size

250mm x 350mm

Safe Load

120% of Rated Capacity

Ultimate Load

150% of Rated Capacity

Non Linearity

<+0.03% of FSO (Full Scale output)

Creep (30 minutes)

<+0.025% of FSO

Zero Balance

<+1% of FSO

Input Resistance

400 + 10 ohms

Output Resistance

350 + 5 ohms

Insulation Resistance

Above 5000 Mega ohms

Temp. Compensation

- 10 ºC to + 40 ºC

Temp. Effect on zero & span

< 0.03% FSO/10 ºC

Material

Alluminium alloy, colourless anodized

Cable

4mm, 0.42mts



Installation Size (mm)


Download Detail File : Click Here

Wiring Schematic Diagram

  • Red : Input (+)
  • White : Output (-)
  • Black : Input (-)
  • Green : Output (+)

Notes:It used 4-core shielded cable(φ5×3000mm)

Load Instruction


Download Detail File : Click Here

Additional Information

  • Delivery Time 1 Working Day
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Product Images

  • CZL-601 Load Cell
  • CZL-601 Load Cell
  • CZL-601 Load Cell
