Cylindrical Mandrel Bend Tester

₹ 500 / Piece

Made ofStainless Steel Rollers
NoteCalibration Certification charges to NPL standards
Diameter2mm to 32mm
StandardASTMD 522
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 9 Years
Nature of Business Manufacturer
GST No. 29AALFC3452B1ZN

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

UsesIt comes with a sturdy vice for fixing the mandrels
NoteCalibration Certification charges to NPL standards
Made ofStainless Steel Rollers
Consists Of2, 3, 4, 5, 6, 8, 10,12,16,18, 20, 22, 25 & 32mm Mandrels in a Wooden Box
StandardASTMD 522
Diameter2mm to 32mm

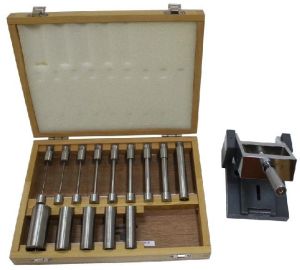

This test is carried out by bending the coated panel around mandrels of different diameters until damage occurs. Max. panel size: 70mm width and 0.8mm thick. Robust stainless steel Rollers from 2mm - 32mm dia, as per ASTM D 522, DIN 53152, EN-ISO 1519. Mandrels are supplied in a deluxe wooden box, with a sturdy vice, pre-drilled frame ready to secure on workbench and for fixing mandrels.
Set of mandrels: 2, 3, 4, 5, 6, 8, 10,12, 16,18, 20, 22, 25 & 32mm.
OVERALL WEIGHT : 7Kgs. (approx) Confirming to ASTM D 522. (IMPERIAL) Consists of 1/8, 1/4, 3/8, 1/2, 5/8, 3/4, 1 inch mandrels. ( 7 Nos.)
