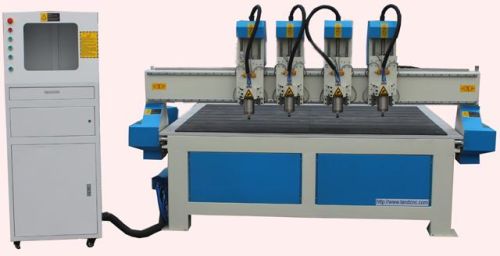

Contact SupplierWe are offering cnc router center.
Parameters:
main configuration : control system: syntech control system
driver motor : servo motor
support rail : reducer
inverter : 11kw
spindle motor : 9 kw air cooling
tool magazine : 10 tool
table : vaccume pump
dust removal equipent : complete
working area : 1300*2500*200mm, 1500*3000*200mm
working voltage : 380v
feeding speed : 300000mmmin
spindle speed : 6000-18000rpm
engraving instruction : hpgl, g, eng code
features:
1.welded structure by thick profiled steel, stabilized under high temperature, ensures minimum distortio, excellent rigidityand powerful srength.
2. The machine is mainly assemble with precsion parts and components, coupled with the japanese large torgue servo motor, ensures the machine run stable with low noise, fast speed, and high positioning accuracy.
3. Imported aircooling atc spindle, high precision, long service life and stable, stable and reliable in processing for long tie. Application of automatic tool changer, makes the tool changing rapid and accurate. The special tool sensor enables the machine compensate the tolerance of the tool length accuraately.
4. The vaccume table adopts double cavity type adsorption. The use of high strength bakelite board milled in one time ensures high adsorption power.
5. Imported control system, seperated keyboard operation, color lcd screen, more powerful.
6. Strong dust collection system keeps the machine away from dust blowing when working.
7. Auto lubrication system, one touch can finish th eperiodic maintenance
application:
applicable to the production of cabinate doors, solid wood doors, computer desk, furniture and so on, can be used for engraving, cutting and 3d relief carving of mass mdf in large areas.
