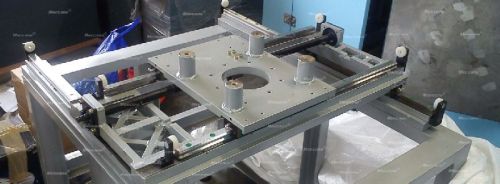

CUSTOMIZED XY AXES

Listing ID #4172511

Get Latest Price

Overall WeightApprox 200 kilograms
Slide DesignHollow; Opening 150 mm diameter
Supporting StructureFrame type – Movable or Mountable on another linear Motion Guiding System
X Y axes Stroke400 X 500 mm
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Slide Design Hollow; Opening 150 mm diameter
Drive Lead Screw 5 mm pitch, Hand Wheel Drive
Overall Weight Approx 200 kilograms
Load carrying Capacity 1000 kilograms
Guiding System Linear Motion Guides
Over all Size Approximately 1025 X 850 X 650 mm
X Y axes Stroke 400 X 500 mm
Supporting Structure Frame type – Movable or Mountable on another linear Motion Guiding System

APPLICATION:

Machine Tool X-Y Axes
Automation
Material Handling SPECIAL FEATURES OF THE SYSTEM:
- No obstacles in Material handling area below the slide. Can provide clamping at specific datum in order to avoid overhead loads
- Rigid and Robust Slides with negligible deflection on load POSSIBLE SYSTEM INTEGRATION:
  - Motor Drive – AC Ind/ AC/DC Servo Stepper
  - With 2 Axes Controller
  - With Linear Scales/ Encoder for close loop system
  - With Work table
  - With Centralized Lubrication System
  - Base frame with trolley manual/ motorized driven
