Lbx9000 mimo 4g 5g throughput iot wireless device test enclosure

Lbx9000 mimo 4g 5g throughput iot wireless device test enclosure

Listing ID #6167503

6.80 Lakh - 7.50 Lakh / 1-10

Get Latest Price

MOQ 1 Piece
TypeRf Shielded Enclosure
MaterialRF Shielding Material
ShapeCustomized
ColorCustomized
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Type Rf Shielded Enclosure
Material RF Shielding Material
Shape Customized
Color Customized
Width 31 Inche
Open Style Hinged
Height 34 Inch
Country of Origin India
Brand Name LabiFix Innovations
Application Wireless Device Testing
Power 230VAC
Warranty 1 Year
Operating Frequency Range 800MHz to 12GHz
Fiber optics ST & Waveguide
Exterior 34 H x 31 W x 34 D Inch
RF Ports SMA, N Type, BNC, TNC
Application Wireless testing, Digital forensics, R&D, EMC Testing
Input /Output Configuration Completely Customizable I/O Connector options
Filtered Ethernet 10M, 100M, 1G
Filtered USB 2.0 & 3.0
Ventilation High performance shielded Air Vents for adequate air flow
Shielding Effectiveness > 100dB @ 1 GHz > 95dB @ 3 GHz > 90dB @ 6 GHz
Interior 32 H x 29 W x 32 D Inch
Powered by AC / DC Power filter
Data Db9, Db15, Db25, Db50, Rj11

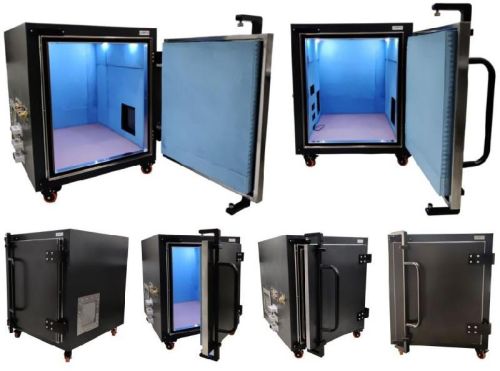

LBX9000 is large RF Shielded Test Enclosure Spacious to house multiple devices like laptops and

Desktop computers with optional compartments for easy placement of Device under test

designed to meet a wide range of testing requirements Superior shielding effectiveness

against RF interferences featuring with Filtered AC & DC power lines,

Filtered Data lines & RF connectors.

I/O Options, dimensions, performance, etc. can be customized to meet your needs.

HIGHLIGHTS

High performance shielded Air Vents for adequate air flow
Higher RF Isolation
Completely Customizable Shielded Enclosure
High Performance RF Absorber lining
User Defined & Interchangeable I/O Connector options
Rugged Welded Construction
EMI filters on Data Ports
RF Gasket System
Optional pneumatic Door operation system
Bench top or Trolley provision

TECHNOLOGIES SUPPORT

Supports Current and future wireless communication
technologies such as LTE, 5G
Wi-Fi 802.11 - all series
Wi-Max, GNSS, Bluetooth
EMI, RFI test
Device Testing, over the air measurements, Pre-compliance
R&D, Product verification, Performance reliability, Quality
assurance tests

Download

Download Detail File : Click Here

Additional Information

Payment Terms T/T
Port of Dispatch Bangalore
Packaging Details We use export-quality inspection and fumigation wooden boxes with a strong construction, making sure that the shielding box will not be damaged in transport. The design is ideal for long distance transportation such as shipping on land or by sea, and can be shipped to any country around the world.
Delivery Time 30 Days
