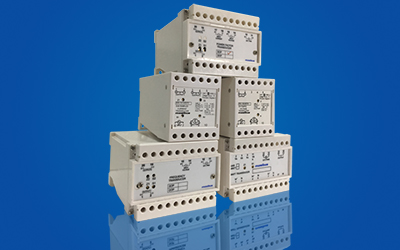

Current/ Voltage/ Power/ Frequency Transducers

Listing ID #3195619

Masibus manufactures high quality Electrical Transducer of various types to help you manage and conserve electricity. All electrical parameters such as Current, Voltage, Active Power, Reactive Power, Frequency and Power factor can be accurately measured. A corresponding linearized signal is then transmitted for various applications such as SCADA, SS automation, remote indication etc. Output proportional to measured electrical parameter can be connected further to Controllers, Data-Loggers, PLC�s, Analog Digital Indicators, Recorders for display, analysis or control
Electrical Transducer series offers an economical and accurate means of current & voltage measurement on systems where the waveform is a pure sine wave. Transducers are calibrated to true RMS value of the sine wave. They can also be used with distorted waveforms where high accuracy is not required.
Electrical Transducer are having its application to interface with RTUs. Masibus make transducers are also available with dual output option. It provides accuracy up to 0.25% FS with up to 2 KV isolation. Hardware calibration is done through trim-pot.
All transducers performs with exceptional accuracy, repeatability and reliability. In addition to being most accurate, our transducers are equally preferred by OEMs end users to other makes for their excellent stability over a long period of operation. This world class technology now comes to you at a very competitive price.
AC line transducers are available as current, voltage in 1� configuration whereas power, frequency & power factor in 1� 3� configuration.
