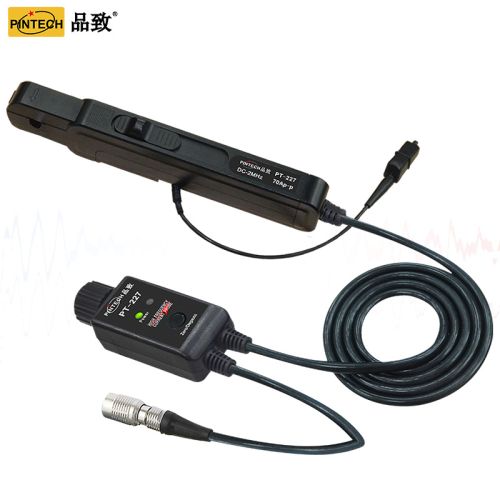

Current probes -PT-227 (2MHz,70A) High frequency current probe

Listing ID #3658293

Get Latest Price

Supply Type Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Features: Easy-to-Use and Accurate AC/DC Current Measurements;DC-2MHz Bandwidth,Core Jaw Diameter of 5 mm (0.2 in.)；High Accuracy with Typically Less than 1% DC Gain Error；Split-core....

View More Details

Send Enquiry

Product Details

Features: Easy-to-Use and Accurate AC/DC Current Measurements;DC-2MHz Bandwidth,Core Jaw Diameter of 5 mm (0.2 in.)；High Accuracy with Typically Less than 1% DC Gain Error；Split-core Construction allows Easy Circuit Connection；Low Noise and DC Drift. Applications: Power supplies, semiconductor devices; inverters/converters, electronic ballasts; industrial/consumer electronics, mobile communications; motor drives, transportation systems, propagation delay measurements, etc.

Accessories including adaptor power supply.

Model	PT-227
Bandwidth	DC-2MHz
AC current	70Ap-p
DC current	35A DC
Max.RMS current	24A rms
Min.current	20 mA
Accuracy	1%（±5mV）
Noise	≤6mA RMS
Rise time	175ns
Coupling	AC/DC
Length	1.48m
Clamp dia.	5mm
Conversion ratio	0.1V/A
