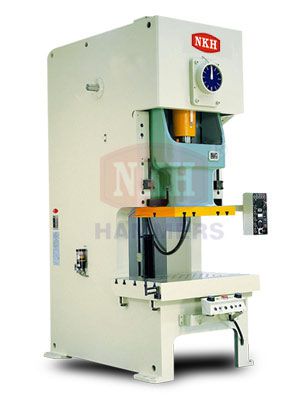

Cross Shaft Press

Listing ID #3819559

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

More accurate – NKH Cross Shaft Power Presses that raise standard’s of precision & rigidity. Single Point Suspension Non-Inclinable Single Action Press having steel plate fabricated construction,....

View More Details

Send Enquiry

Product Details

More accurate – NKH Cross Shaft Power Presses that raise standard’s of precision & rigidity.

Single Point Suspension Non-Inclinable Single Action Press having steel plate fabricated construction, duly stress relieved with 6 Point gibbing of slide, fitted with pneumatically operated combined single disc. friction clutch & brake.

Features

Reduced Noise & Vibrations
Minimal Frame Gapping, Low Angular Deflection < 1.5 minutes
High Rigidity Frame & Bolster
High Precision Forming for Longer Die Life
Hi-Torque Pneumatically Operated Single Disc Combined Clutch & Brake Unit
Gear Transmission Runs in Oil Bath
Wide Slide & Bolster Area

Capacity Tons		32	40	63	80	100	160	200	250
Table Size		630×400	800×450	850×500	960×570	1000×625	1120×650	1250×800	1250×800
Slide Area L-RxF-B		350×250	400×325	500×400	500×400	625×425	700×590	875×775	900×775
Day Light (SUAU)		330	340	400	420	450	560	650	675
Stroke Length Fix		60	60	100	100	125	160	200	200
Stroke Length (Adi)		8-60	8-60	8-100	8-100	8-125	8-160	8-200	8-200
Slide Adjustment		63	63	70	70	80	100	100	125
Shut Height (SDAU)		270	280	300	320	325	400	450	475
Nos Of Slide Strokes (SPM)		50	50	50	50	45	40	40	35
Fly Wheel Energy (KJ)		4.4	8	16.75	20	25	55	70	80
Height from Floor to Top		800	850	856	850	850	900	900	900
Main Motor (HP)		3	5	7.5	7.5	10	20	20	25
Req.air pressure for pneumatic clutch ( Kg/Cm2)		5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5
Optional Die Cushion	Capacity	1.7	4.5	70	80	100	200	200	270
	Stroke	50	50	50	50	50	75	100	100
	Air Pressure (Kg/Cm2)	6	6	6	6	6	6	6	6
