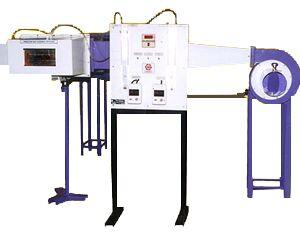

Contact SupplierHot air is obtained by passing air over a bank of finned tubes. The air then flows to heat exchanger section i. e. a bank of finned tubes. Hot air flows through tubes while cold air flows over the tubes at right angle to hot air. The experiments can be conducted over various air flow rates and air temperatures to determine LMTD, heat transfer rates and effectiveness of heat exchanger.
SPECIFICATIONS
1. Heat Exchanger – finned tubes. 17mm I.D., 20mm. O. D., 0.5mtr. long tube with 50mm. O. D. fins – 25 Nos.
2. Centrifugal blower on hot and cold sides.
3. Finned air heaters 1 Kw each 3nos.
4. Air flow control arrangement at blower suction.
5. Multichannel Digital temperature indicator to measure temperature of air at inlet and outlet of heat exchanger.
