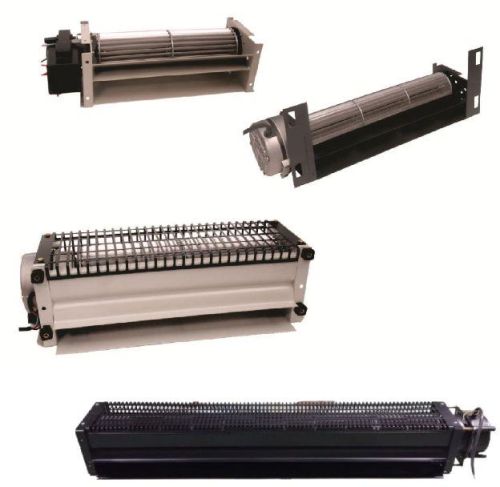

Cross Flow Blower

Listing ID #6814797

  • MOQ 500 Piece
  • Vibration10 Minutes/Plane, 15Hz, 2mm - Amplitude
  • Insulation ClassB
  • Drop Test50 Cm in Original Packing
  • Insulation Resistance500 V DC/100 MΩ
  • Supply Type Exporter
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

Ambala Cantt, Ambala, Haryana
08048773657
  • Member Since 5 Years
  • Nature of Business Manufacturer
  • GST No. 06AAOFM8899H2ZC

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Insulation Class B
  • Operating Temperature -10 degree C to 60 degree C
  • Drop Test 50 Cm in Original Packing
  • Bump Test 2000 bumps, 40G, 2-3 bumps/sec
  • Humidity 45 + 5 degree C, 90 + 5% RH, 168 hrs
  • Dielectric Strength 1500V/1minute/1mA
  • Vibration 10 Minutes/Plane, 15Hz, 2mm - Amplitude
  • Insulation Resistance 500 V DC/100 MΩ

Cross Flow Blower is also known as a tangible lower, which is an air-moving device. It is commonly used in various applications such as ventilation, heating, air-conditioning and refrigeration system.

It includes rectangular or cylindrical housing containing an electric motor and impeller blades. Any reputed Cross Flow Blower Manufacturer will ensure a quality product is delivered. A cross-flow blower draws air into the house through an inlet and forces it out in perpendicular directions which results in a cross-flow of air.

It is achieved through the rotation of the impeller that has helical or curved blades. They are favoured for their ability to evenly distributed flow across a wide area. All you need to do is check with a Cross Flow Blower Exporters for the right product.

They facilitate air circulation, ventilation and cooling. These laws are also used in electronics, cooling for dissipating heat from electronic components. There also found in appliances such as air, curtains, hairdryers, and wherever airflow is essential various factors that need to be considered when selecting a cross-flow blower is that it includes motor power, impeller design and the dimension of the housing.

You can find the best deal from a renowned Cross Flow Blower Suppliers. These factors affect the efficiency and performance of the blower. They are also used in electronic cooling applications for dissipating heat generated by electronic components that operates by generating the airflow through a combination of centrifugal force and the shape of the impeller blades.

These products are manufactured and exported by numerous Cross Flow Blower Exporters from India, ensuring customers have access to high-quality products that meet international standards.

With so many applications, it is always a smart decision to buy the best quality product that will serve the purpose without any issues in the long run. All you need to do is conduct some research about the product and what you are looking for.


Drawings & Dimensions


Download Detail File : Click Here

Electrical Specifications

Model No. Operating Voltage Power (On Load) TYP RPM (On Load) LVS Max. Max. Pressure MM. Water Free Airflow Litres/Sec
MCBH621L/2L-F6A 230V 34W 1800 min. 140 V 3.5 74
MCBH621L/2L-G3B 230V 24W 1300 min. 140 V 2.8 54
MCBH630L/2L-F6A 230V 38W 1500 min. 140 V 3.1 83
MCBH630L/2L-H4B 230V 28W 1300 min. 140 V 3 75
MCB1031L/2L-E3 230V 33W 1250 min. 120 V -- 120

Technical Details


Download Detail File : Click Here
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

Beginning in 1989, Micro Instruments Co. today caters to a wide variety of OEM requirements of motors, e.g. for Refrigerators, Air Conditioners, Visi coolers, Telecommunications and other Electronics equipment. Some products have been designed and manufactured for automotive under the hood application as well.Applied Technological and engineering capabilities for brushless motors allow us to introduce innovative new energy efficient products like Brushless Motor Ceiling Fan. We do the hard work so you can enjoy electricity savings without compromising on the comfort.
  • Nature of Business Manufacturer / Exporter
  • Number of Employees 50 - 100
  • Year of Establishment 1989
