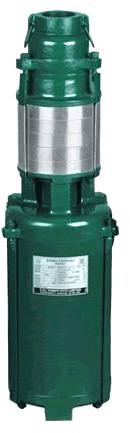

Contact SupplierWe are one of the ace Suppliers of CRI Vertical Openwell Submersible Pump. The rigid stainless steel stator shell helps CRI Vertical Openwell Submersible Pump to work efficiently under water. Detachable pump and motor in vertical higher stage pump comes with detachable pump and motor in vertical higher stage pump. We provide this pump at market leading price.
Features :
Power Range | 0.75kW – 1.5 kW ( 1HP – 2HP ) - Vertical |
Speed | 2880 RPM |
Version | Single phase 200-240V, Three phase, 380 -415V, 50Hz, A.C Supply |
Maximum total head | 75 metres (7.5 bar ) |
Maximum flow rate | 7200 LPH (7.2 M3 / Hr) |
Nominal outlet size in inches | 1, 1¼,1½, 2 ,2½,3,4 & 5 |
Degree of Protection | IP 58 |
Direction of Rotation | Clockwise from driving end |
Type of Duty | S1 (continuous) |
Method of starting | Capacitor Start Capacitor Run (CSCR) / Permenant Split Capacitor (CSR) Direct on Line upto 5.5 kW, SD upto 30kW |
Maximum starts per hour | 6 times |
Part Name | Material |
---|---|
Pump Casing | CI |
Stator Shell | SS 304 / Mild Steel |
Impeller | SS, Cast Iron and LTB - 2 |
Shaft | SS 410 |
Journal Bearings | Leaded Bronze |
Thrust Assembly | Leaded Bronze and Compostos / Stainless Steel 420 with Graphite Carbon |
