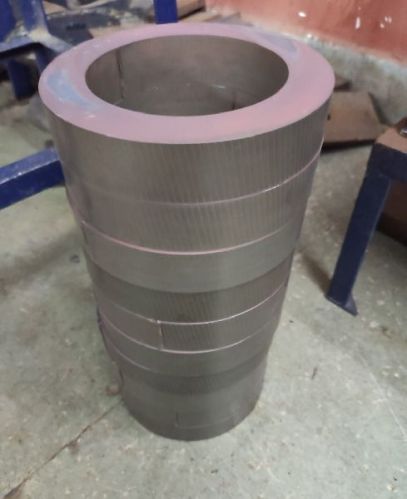

CRGO Round Toroidal Core, Color : Grey

Listing ID #150246

The Round Toroidal Cores we offer finds extensive usage in high tension and low tension transformers. Round Toroidal Cores has compact volume, is light weight, has low magnetic leakage / hum & is highly efficient. We have the facility of making customized Round Toroidal Cores based on the specifications provided by the customer pertaining to the inside and outside diameter and width of the strip in mm. About Round Toroidal Cores :

• Round Toroidal Cores are wound from cold rolled grain oriented (CRGO) silicon steel strips ranging from 10 mm to 100 mm single slit
• Toroidal cores are wound by automatic core winding machine
• Annealed in high vacuum furnace under protection of nitrogen atmosphere or in continuous tunnel furnace for 18 to 24 hours (at 800° C)
• Designed with CRGO grades as required by customer, duly wound and annealed in inert atmosphere
• Guaranteed No load current (AT /Cm) as per B-H Curve of particular grade
• 100% testing done on all Toroidal Cores at flux densities
• Testing for electrical values and issue of test certificates Painting or impregnation (if required)

Round Toroidal Cores Sizes : 15 mm ID to 1000 mm OD
Fabricated Using : Prime CRGO electrical steel in grades. M3, M4, M5, MOH, TCH-0, TCH-1, Z DKH
Round Toroidal Cores offered by us find usage in low tension and high tension transformers and are wound from cold rolled grain oriented (CRGO) silicon steel nips ranging from 10mm to 100mm single slit and we offer core sizes from 15mm ID to 100Ornm OD.To provide optimum performance these toroidal cores are wound by automatic core winding machine and are annealed in high vacuum urna. under protection of nitrogen atmosphere or in continuous tunnel furnace, which results in features like compact volume, light, low magnetic leakage and hurn & high efficiency In CRGO grades required by customer, duly wound and annealed in inert atmosphere. Guaranteed No load current (AT /Cm) as per B-H Cuive of particular grade In house testing facilities and 100% testing done on all Toroidal Cores at flux densities specified by customers. Annealing in controlled Nitrogen atmosphere for 18 to 24 hours (at 800° C) Testing for electrical values and issue of test certificates Painting or impregnation (if required). Material used in these cores are prime CRGO electrical steel in grades. M3, M4, M5, MOH, TCH-0, TCH-1, ZDKH as per customers requirement. Who ordering specify the inside & outside diarneter & strip width in mm.
