Contact SupplierCapacities starting from 200 LPH to 20,000 LPH:-
System consists of the following system:-
a) A hot water generation system:-
-Steam pipe with bypass assembly to transfer the steam from boiler to hot water PHE.The pipeline consists of auto control steam valves,gun metal valves and pressure gauges.
-Hot water PHE to generate hot water from steam.The outlet of PHE consists of steam trap for effective condensation and creating back pressure for steam.
-The system consists of hot water pump,buffer vessels,safety valves and make up line for water.

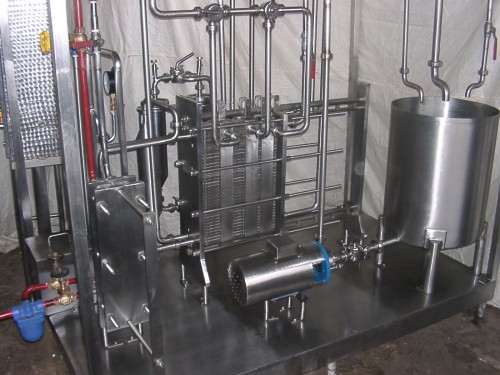

b) Milk Pasteuriser PHE plate pack :-
-The Multi-section PHE plate pack is used to heat the milk from room temp. to pasteurisation temp.Milk gets hold in holding tube and gets chilled to 4 degree celcius after pasteurisation.
-Provision of milk separator and homogenizer
-Regeneration efficiency upto 93%
c) Auto Control Valve:-
Auto control valve to forward/divert the milk in case temp. reaches set point.
d) Accessories
-Float balance tank
-Milk pump
-Milk pipeline and water pipeline
-Milk valve
- Temp. sensors
e) Electrical panel
-Panel to start motors
-Flow controller for milk
-Steam controller for steam
-On/Off;Auto/Manual;Forward/Divert Switches;
f)Holding the milk from 20 sec to 15 mins. depending upon the process
g)SS skid frame to mount all the accessories
