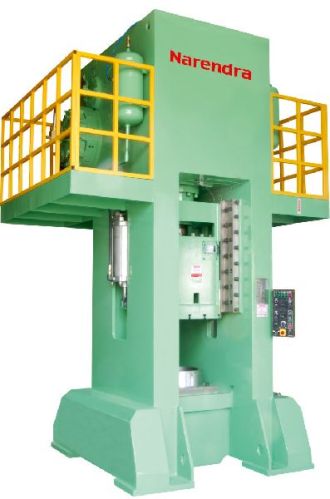

Crankless Press

Listing ID #3471117

70,000 / Piece

Get Latest Price

Stroke Per Minute45 SPM
Stroke of Cusion150 mm
FeaturesHydraulic overload protection system, Extra long 8-points guide plate, Air counter balancer device, Automatic recirculating lubrication with distributing monitor device.
Bolster Thickness140 mm
Supply Type Manufacturer, Exporter, Supplier, Distributor, Trader
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Stroke Per Minute 45 SPM
Stroke of Cusion 150 mm
Limit 6 mm (B.D.C)
Air Pressure Required for Clutch 5.5 kg/cm2
Capacity 200 Ton
Size of Bolster 1200 X 1200 (LR x FB)
Slide Adjustment Motorized 150 mm
Motor 15 Kw
Bolster Thickness 140 mm
Die Cusion Pad Area 800 X 500 mm (LR x FB)
Slide Adjustment Motor 1.5 Kw
Features Hydraulic overload protection system, Extra long 8-points guide plate, Air counter balancer device, Automatic recirculating lubrication with distributing monitor device.
Shut Height Over Bolster 450 mm
Brand Name Narendra
HT of Bolster Surface From Floor 900 mm
Slide Face 1000 X 900 (LR x FB)
Die Cusion Capacity 18 Ton at 7.3 Kg/Cm2
Model NCL-1-200
Stroke Fixed 300 mm

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

One Stop Destination for Safe & Modern Power Press Equipment
Welcome to “NARENDRA”, a leading manufacturer of international level Power Press machines in India….
We are appreciated by our customers for providing sophisticated, safe and reliable power press machines. We manufacture wide ranges of power machines to fit to our user’s needs like Hot Forging Prees, Knuckle Joint Press, Cross Shaft Press, Single Point Crankless Press, Ring Frame Cross Shaft Press, Two Point High Speed Press, Left to Right Press, Straight Sided Two Point Press, Straight Sided Single Crank Press, Straight Sided Presses, Pilfer Proof Caps Making Machine etc…. Browse our product list to know the modern mechanism of our machines and why they are the best…
We have equipped our centre with all modernized facilities to improve our production performance. We follow systematic approach for development of each machines. All our products are manufactured as per quality standards & specification along with geometrical accuracies as per JIS B- 6402 Grade -1 Japanese Industrial Standard. To improve machine performance and enhance our productivity, we use all ultra modern technologies in 3D/CAD/CAM to provide best mechanical presses to our customers. Our production house has been inspected and analysed from time to time to maintain quality in production.
Each of our Power Press has easy mechanism, requires a little training to handle the tool. It has a built-in safety device. Automatic operation is done, high rigidity, lower maintenance, production accuracy.
Our high performance range of Mechanical Power Presses Includes: Pneumatic Presses, Mechanical Power Presses, Closures, Cold and Hot Forging Presses.
