Covering machine

Listing ID #3774958

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

covering machine the fully ceramic pre-take-up roller, which is designed specially for elastic yarns, ensures optimum reduction of the take-up yarn tension in the traversing triangle. double deck....

View More Details

Send Enquiry

Product Details

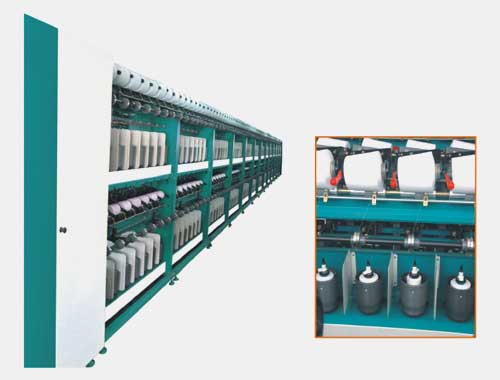

covering machine

the fully ceramic pre-take-up roller, which is designed specially for elastic yarns, ensures optimum reduction of the take-up yarn tension in the traversing triangle.

double deck machines for covering of elastic yars/glass fiber yarn

the machines, built to fit hollowed spindles, are equipped with a high sophisticated traverse, tapering device & lip motion device, such to take-up even packages to be used directly in hosiery without prior rewinding.
the take-up cradle is of the "open arm" type, with centering running on ball bearings.
different types of control can be equipped the machines from fully mechanical to full electronic system.

Technical Specifications

COVERING TYPE	Double
SPPINDLE GAUGE	225
MAX. WORK SPEED	20000
WHARVE DIAMETER	25
SPINDLES DRIVE	Tangential belt
RANGE OF WRAPS NO. PER MT. (SPPPINDLES)	150 to 4500
TYPE OF FEEDING PACKAGE
COVERING YARN	Flanged bobbin type
CORE YARN (IYCRA/RUBBER)	Bobbin width 115 max. or cone dia 220 mm.

TAKE UP
NO. OF DECKS	02
MAX. BOBIN DIA.	180
TRAVERSE LENGTH	152 mm.
TUBE LENGTH	172 mm.
CYLINDRICAL TUBE DIAMETER	63 mm.
MAX. SPEED OF TAKE-UP	60 m / min

FRAME
SECTION LENGTH	1830
MACHINE WIDTH	700
MACHINE HEIGHT	1800

Specification may be subject to change without prior notice.

NO. OF SECTIONS	10	11	12	13
NO. OF SPINDLES	320	352	384	416	Height
LENGTH - METER	20.15	21.98	23.81	25.64	2.1
LENGTH - FEET	66'2"	72'2"	78'2"	84'2"	6'10"
