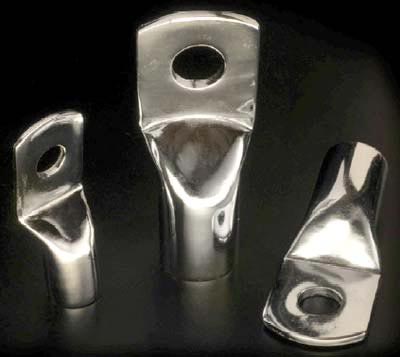

Contact SupplierWe are ranked among responsive and responsible Manufacturers and Suppliers of Copper Cable Lugs in Mumbai, Maharashtra. Our company fabricates them using the best-grade raw materials to ensure, our Copper Cable Lugs are robust, highly reliable even at 150 ºC temperature and durable. We make them available in bulk. Interested buyers can purchase Copper Cable Lugs from us at competitive prices. Our company is engaged in providing individually tailored Copper Cable Lugs as well.
Material : High conductivity seamless copper tube to BS 2874-C 101 ASTMB 152-C 11000
Features : Incorporated with inspection windows, thus ensures full conductor insertion. Entrance chamfered to facilitate cable entry smoothly and easily High wall thickness, giving termination, excellent electrical and mechanical properties simple installation with readily available tools.
Finish : Uniformly Electro-tin-plated to endure operation temperatures up to 150 °C. For operating temperatures above 150 °C up to 350 °C Electrolytic nickel-plated is suggested.
Cable Size Sq.MM. | Stud Hole E | A | C | D | F | G | H | K | B | L | Component No. |
---|---|---|---|---|---|---|---|---|---|---|---|
1.5 | 4.2 | 1.8 | 3.7 | 8 | 1 | 4 | 5 | 2 | 5 | 16 | SI - 1.5 - 4 |
1.5 | 5.2 | 1.8 | 3.7 | 8 | 1 | 4 | 5 | 2 | 5 | 16 | SI - 1.5 - 5 |
1.5 | 6.5 | 1.8 | 3.7 | 10 | 0.8 | 5 | 6 | 2 | 5 | 18 | SI - 1.5 - 6 |
2.5 | 4.2 | 2.4 | 4 | 8 | 1 | 4 | 5 | 2 | 7 | 18 | SI - 2.5 - 4 |
2.5 | 5.2 | 2.4 | 4 | 10 | 0.8 | 5 | 6 | 2 | 7 | 20 | SI - 2.5 - 5 |
2.5 | 6.5 | 2.4 | 4 | 10 | 0.8 | 5 | 6 | 2 | 7 | 20 | SI - 2.5 - 6 |
2.5 | 8.2 | 2.4 | 4 | 11 | 0.7 | 6.6 | 8.5 | 2 | 7 | 24 | SI - 2.5 - 8 |
4 | 4.2 | 3.1 | 4.8 | 10 | 1 | 5 | 6 | 2 | 7 | 20 | SI - 4 - 4 |
4 | 5.2 | 3.1 | 4.8 | 10 | 1 | 5 | 6 | 2 | 7 | 20 | SI - 4 - 5 |
4 | 6.5 | 3.1 | 4.8 | 10 | 1 | 5 | 6 | 2 | 7 | 20 | SI - 4 - 6 |
4 | 8.2 | 3.1 | 4.8 | 12 | 0.8 | 6.5 | 8.5 | 2 | 7 | 24 | SI - 4 - 8 |
6 | 4.2 | 3.0 | 5.5 | 10 | 1.2 | 5 | 6 | 3 | 9 | 23 | SI - 6 - 4 |
6 | 5.2 | 3.8 | 5.5 | 10 | 1.2 | 5 | 6 | 3 | 9 | 23 | SI - 6 - 5 |
6 | 6.5 | 3.8 | 5.5 | 12 | 1 | 6 | 9 | 3 | 9 | 27 | SI - 6 - 6 |
6 | 8.2 | 3.8 | 5.5 | 12 | 1 | 6 | 9 | 3 | 9 | 27 | SI - 6 - 8 |
6 | 10.2 | 3.8 | 5.5 | 16 | 0.8 | 6 | 11 | 3 | 9 | 32 | SI - 6 - 10 |
10 | 5.2 | 4.5 | 6.2 | 12 | 1.2 | 9 | 7 | 3 | 10 | 25 | SI - 10 - 5 |
10 | 6.2 | 4.5 | 6.2 | 12 | 1.2 | 6 | 7 | 3 | 10 | 25 | SI - 10 - 6 |
10 | 8.2 | 4.5 | 6.2 | 12 | 1.2 | 6 | 9 | 3 | 12 | 27 | SI - 10 - 8 |
10 | 10.5 | 4.5 | 6.2 | 16 | 1.4 | 8.5 | 10.5 | 3 | 12 | 32 | SI - 10 - 10 |
10 | 12.7 | 4.5 | 7.1 | 18 | 2.4 | 10 | 1.3 | 4 | 12 | 37 | SI - 10 - 12 |
16 | 5.2 | 4.7 | 7.1 | 12 | 1.4 | 7 | 7 | 4 | 12 | 30 | SI - 16 - 5 |
16 | 6.5 | 5.4 | 7.1 | 12 | 1.4 | 7 | 7 | 4 | 12 | 30 | SI - 16 - 6 |
16 | 8.5 | 5.4 | 7.1 | 12 | 1.4 | 7 | 9 | 4 | 12 | 32 | SI - 16 - 8 |
16 | 10.5 | 5.4 | 7.1 | 19 | 1.8 | 10 | 10 | 4 | 12 | 36 | SI - 16 - 10 |
16 | 12.7 | 5.4 | 7.1 | 19 | 1.8 | 12 | 12 | 4 | 12 | 40 | SI - 16 - 12 |
