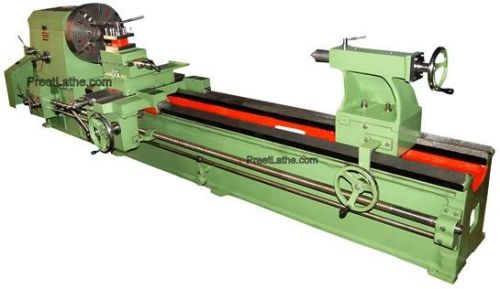

Contact SupplierSince 1984, Our Company, Preet Lathe Udyog has engaged in manufacturing of Lathe Machine in Batala with the simplest design and Robust Building. Our Conventional Lathe Machine design assures defined performance, easy operation and high production. For constructive engineering, we use materials which are the selected ones. These machines are manufactured strictly on quality basis to give long trouble free service, thus guarantee a precision and economic working and cuts cost ultimately. Preet Lathe Udyog is involved in the Engineering of great performance Cone Pulley/ V- Belt Lathe Machine or Conventional Lathe Machine in Batala. Over 30 years, we are well-regarded Conventional Lathe Machine Manufacturer, Suppliers and Exporters of an Exhaustive Collection. The building of the Machine Series takes place by using Standard Grade Cast Iron & Steel that is obtained from the well-known vendors of the market.Â
Included Accessories:
 Dog Chuck Plate
 True Chuck Plate
 4 Way Tool Post
 Steady Rest
 Follow Rest
 Dead Center
Extra / Optional Accessories
 Dog Chuck Â
True Chuck
 Electric Control Panel Â
Rapid Motorized Saddle
 Main Motor Â
Coolant Pump With Tank
 Taper Turning AttachmentÂ
 Machine Light
 Splash GuardÂ
 Foot Operated Brake
 Tool Post Grinding AttachmentÂ
 Key Way Cutting Attachment
 Turcite Lining Fitting Â
Digital ReadOuts - DRO
 Flame Hardened Bed Â
Motorized Saddle
 Third Shaft Â
Rear Tool Post
Â
Description | A | B | C | D | E | F |
Bed Length | 6' | 8' | 12' | 16' | 20' | 24' |
Bed Width | 14" | 18" | 26" | 26" | 28" | 28" |
Center Height | 12" | 16" | 24" | 24" | 26" | 26" |
Admit Between Centers | 38" | 50" | 70" | 120" | 165" | 213" |
Swing Over Bed DIA | 24" | 31" | 47" | 47" | 51" | 51" |
Swing In Gap DIA | 36" | 46" | 72" | 72" | 76" | 76" |
Spindle Hollow | 3" | 3.5/8" | 4.1/8" | 4.1/8" | 4.1/8" | 4.1/8" |
Leadscrew Pitch | 2 or 4 TPI | 2 or 4 TPI | 2 or 4 TPI | 2 or 4 TPI | 2 or 4 TPI | 2 or 4 TPI |
