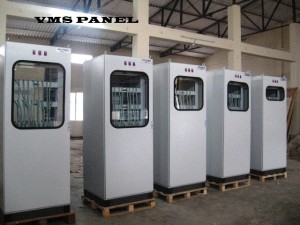

GENERAL SPECIFICATION OF CONTROL PANELS:

• Construction : Fixed / Draw Out / Single Front / Double Front
• Material Of Construction : MS CRCA, Load Bearing Member 14 Gauge Others 16 Gauge
• Finish : Powder Coated @ 80-100 Microns After 7 Tank Treatment
• Rated Voltage : LT Panels – 660 Vac.
• Rated Current : UPTO 40008.
• Short Circuit Level : LT Panels – 35/50/65 KA For 1 Sec. With Initial Peak Of 105 KA
• Busbar Support : SMC/DMC
• Busbar : Aluminium /Copper Electrolytic Grade. Earthing Bus In Copper
  ls Provided Throughout Length Of The Panel
• Safety : Barriers Are Provided To Protect From Live Parts.
