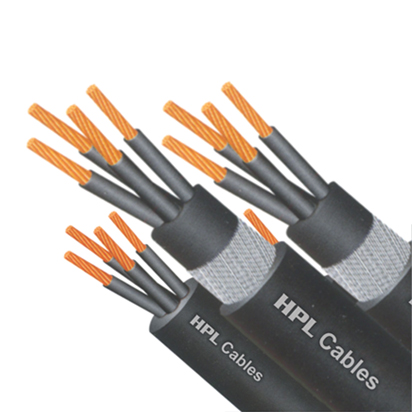

Control Cables

Listing ID #3841807

Get Latest Price

No of strands / conductor:As per IS 8130
Ambient Temperature:40°C
Inner Sheath Material :Extruded, PVC Type ST1 & ST2 of IS:5831/1984
Maximum resistance of conductor at 20°C in Î / km:As per table 1, 2 & 3 of IS 8130
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

No of strands / conductor: As per IS 8130
Maximum resistance of conductor at 20°C in Î / km: As per table 1, 2 & 3 of IS 8130
Ambient Temperature: 40°C
Specifications: IS 1554-1/1988 & IS:7098-1/1988
Voltages grade: Up to 1100 Volts
Laying Up of core : As per table No. 3 of IS:1554-1/1988 & table no. 4 of IS:7098-1/1988
Standard length of Cables : 500/1000
Shape of conductor: Flexible / Stranded / Solid
Size of conductor in mm2: 1.5 & 2.5 mm2 and upto 10 mm2
max. Safe pulling force copper conductor : 5.0 kg per Sqmm
PVC Sheathed compound for multicore cables: Extruded, PVC Type ST1,ST2 FR, FR-LSH
Color of Sheath: Black & As per purchase required .
Inner Sheath Material : Extruded, PVC Type ST1 & ST2 of IS:5831/1984
Color of Inner sheath : Black & As per purchaser required .
Max. rated conductor Temperature: 70° C for General purpose insulation & 85° for HR insulation / XLPE 90°C
PVC inner sheath thickness : As per table 4 of IS 1554-1/1988 & table 5 of IS:7098-1/1988
Number of Core: Up to 61 core for 1.5 & 2.5 sqmm and 4,6,10 up to 4 core
Max. temperature of conductor during short circuit: 160° C for PVC insulated & 250° for XLPE insulated .
Armouring : Galvanized Steel roung wire/strip used for as per Table no. 5 of IS:1554-1/1988 & Table no. 6 of IS:7098-1/1988 only armoured cables
Color of PVC insulation: As per Clause No. 10 0f IS:1554-1/88 / IS :7098-1/1988
Conductor material: 100% Electrolytic Annealed Bare Copper As per IS:8130/1984
Currents Rating : As per IS: 3961 part 5, Table No -1, 2 & 6
PVC insulation thickness: As per table 2 of IS 1554-1/1988 & table no 3 of IS:7098-1/1988
PVC insulation compound: Extruded, Type A & C of IS:5831/1984 & XLPE compound as per IS:7098-1/88
Approx reactance of cables ohm/km : 50Hz
PVC Sheath thickness & tolerance: As per table 7 of IS:1554-1/1988 & table 8 of of IS 7098-1/1988

Salient Features

Range : 1.5 to 2.5 Sqmm up to 61 Core , 1100 Volts Grade confirming to IS:1554-1/1988 & IS:7098-1/1988.
Stranded/Solid, 100% pure bare annealed electrolytic copper conductor
Insulation PVC/XLPE/HR
Unarmoured/Armoured- Galvanized Steel roung wire/flat strip
Outer sheath PVC Type-ST-1 / ST2 .
Heavy Duty Performance .

Application

Control cables used for power switch yard control/Relay Equipment & all Industries .
