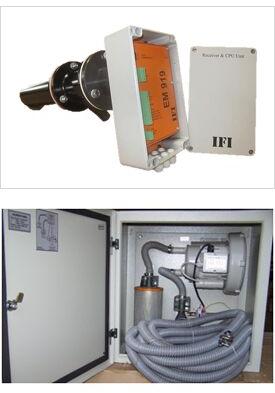

Emission Monitor model EM919 is an indigenous product for measuring dust concentration. This device operates on the principle of optical transmissometry, using single pass of a divergent light beam. It can be installed directly on the outlet stack. The dust concentration is measured depending upon the amount of light blocked by suspended articles in exhaust gas. Advanced techniques are effectively used to detect & compensate for errors due to ambient light as well as stationary dust giving accurate emission readings. Unique design of Swirling Chamber ensures effective cleaning of lenses. Due to its unique algorithm of time-based accumulation of opacity, the EM919 can give emission per normalized gas volume (i.e. in mg/Nm3)

• In-situ measurement
• Real time operation
• High intensity Red LED transmitter which
  • Eliminates error of steam
  • Leads to Effective detection of the ambient light
• Effective detection of stationary dust on the lens
• Single pass diverging beam
• Immune to minor alignment variations
• State-of-the-art microprocessor technology
• Reading in mg/Nm3
• Calibration check for every reading
• Maintenance alarm if excessive dust coating on lenses.
• Hermetically sealed enclosures for the electronics
• High pressure blowers to keep the lenses clean
