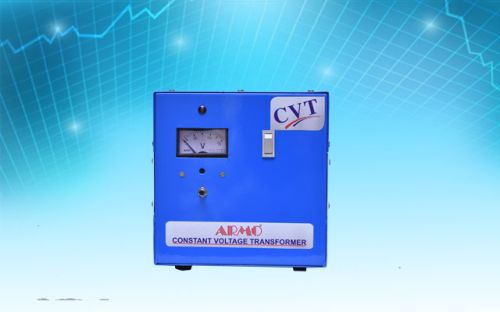

Constant Voltage Transformers

Listing ID #3904521

Get Latest Price

Input Voltage170V to270V AC
Frequency50Hz+1%
PhaseSingle
Output Voltage220/230V+1%AC
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Input Voltage 170V to270V AC
Frequency 50Hz+1%
Phase Single
Output Voltage 220/230V+1%AC
Efficiency 90% at full load
Protection The CVT should Have overload Short circuit, as well as built in spike and surge protection.
Waveform Sinusoidal
Cooling Air Natural Cooled
Correction Speed 100V/SEC
Output Outlet Suitable and heavy duty power outlet with 3 pin15/5 Amps Socket for drawingout regulated power from the CVT
Power Cord A suitable and good quality Flexible PVC insulated,PVC sheathed power cord 2 meter long with 5/15 amps Three pin plug for incoming power supply.
Effect of Frequency Approx.: 1.5% change in output voltage for every 1% Change in line frequency.
Temperature Rise As per IS 2026
Insulation Class B
Response Times 10ms
Capacity 150 VA to 5 KVA
Load Power Factors 0.9
Voltage indicators Voltmeter with selector switch for measuring input and output voltage in the range of 0-300V
Waveform Distortion Less Than 5% at full load
Ambient Temperature 0’C to50’C

ARMO CVTs are based on static, Magnetic (Ferroresonant) Principle. The input winding normally runs at very moderate levels of flux linkage. The output winding exhibits an intrinsic energy storage characteristic and this energy storageco-operates in conjunction with mains capacitors to produce self-generated AC flux fields which is indirectly excited from the input winding.This results in instantaneous voltage regulation,no transient,no spikes,sine wave output,noise less operation and high isolation between inputs and outputs.

Salient Features

Maintenances Free(no moving part)
Very Fast Correction Speed.
High Efficiency & 87%
Zero Voltage Potential between Output, neutral and ground.
Protected Against overload/Short circuit
