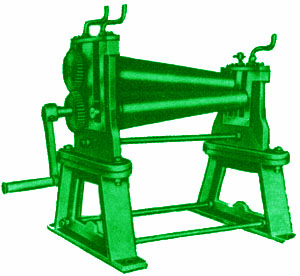

Contact SupplierIndigenous make hand operated conical bending roller suitable to form the cones from bucket body blanks with standard uniform taper as required in buckets, capacity to handle up to 20 swg. thick steel sheets and admits maximum width of sheets up to 18' Die of three conical rolls 3.7/8" at one end 2" at other end; top roll adjustable for various thickness end rear roll adjustable varying dia. of different sizes so buckets, complete mounted on heavy bench stand.
MODEL | AMI-0 | AMI-1 | AMI-2 | AMI-3 | AMI-4 | AMI-5 | AMI-6 | AMI-7 |
Max. width | 12" | 18" | 24" | 24" | 36" | 36" | 48" | 48" |
Cap. in M.S. Swg. | 24 | 24 | 20 | 18 | 20 | 18 | 20 | 18 |
Bending Capacity | ||||
M.S. Width & Thickness | 3" x 1/6" | 4" x 1/8" | 4" x 1/4" | 4" x 3/8" |
6" x 1/8" | 6" x 1/4" | 6" x 3/8" | 8" x 1/8" | |
8" x 1/4" | 8" x 3/8" |
