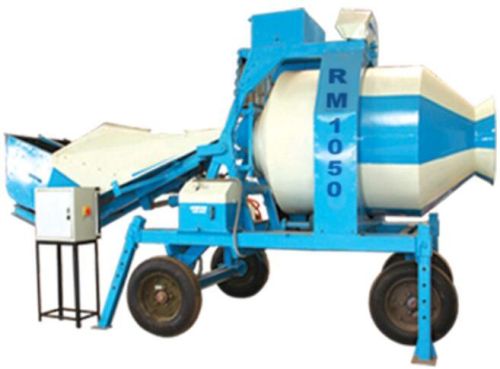

Concrete mixer machine

Listing ID #4298097

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

R R Mobile concrete batching plant is a new plant designed by fluxin on the basis of combination ice technology and latest research fruit at home and abroad as well as the rich producing experiences in the past year of approach in the world wide. It is a nice plant with compact and neat design: most fun i be realized on a chassis, such as collecting, electrical weighing, lifting and mixing. It iseasy to install and convenient to move and can be widely used in all kinds of building sites and producing base of roads, bridges, dams & aerodromes.

MAIN FEATURES

A single chassis model mobile batching mixing plant
Completely mobility free transportation
Re calibration is not required in change of installation plant
Accurate electronic weighing system is reliable & fast
In facility online printer system
Loading of aggregate & sand hopper by tractor mounted feeding LOADER JCB
Separate weighing system aggregate/cement/water & additive is dosing in system fast & accuracy high
Plant only requires electric power supply, water connection aggregated, sand feeding
Promote after sales & services, Spares backup
Free technical guide & online support
Easy disassembling and perassembling
Low cost and high efficiency
Low investment, low maintenance
High efficiency and high quality

SALIENT FEATURES

Compact Design giving fast mix.
Easy to Transportability & Easy to Operation.
Low maintenance cost & Low space Requirement.
Robust Construction.
Prompt after sales service.
Maximum weighing accuracy.

SPECIFICATION	VM 550	VM800	VM 1050
Hopper Capacity	550 Ltrs.	750 Ltrs.	1050 Ltrs.
Batch Capacity	450 Ltrs.	600 Ltrs.	750Ltrs.
Machine Output/hour.	10 Cu. M./hr	12 Cu. M./hr.	15 Cu. M./hr.
Power	10 H.P.3 Ph.Ele. Motor	12.5 H.P.3 Ph. Ele. Motor	15 H.P. 3 Ph. Ele, Motor
Water Tank Capacity	100 Ltrs.	120 Ltrs.	150 Ltrs.
Weighing System	Load cell based weighing system with digital display batch controller	Load cell based system with digital display batch controller.	Load cell Based system with Hydraulic Pumpdigital display batch controller.
Hydraulic Pump	20 Lpm Gear Pump @ 180 Bar	20 Lpm Gear Pump @ 180 Bar	20 Lpm Gear Pump @ 180 Bar
Gear Ring & Roller	Accurately Machined with gear cutting operation supported by heavy duty twinrollers guide	Accurately machined with gear cutting operation supported by heavy duty twin rollers guide	Accurately machined with gear cutting operation supported by heavy duty twin rollers guide
Wheels	Pneumatic wheels( 4 Nos. ) 600 x 16( 4 Nos. ) 600 x 16	Pneumatic wheels( 4 Nos. ) 600 x 16	Pneumatic wheels( 4 Nos. ) 600 x 16
Jack Leveling	Pin Type (4 Nos)	Pin Type (4 Nos)	Pin Type (4 Nos)
Weight (Kgs) Approx	2350 Kgs.	2800 Kgs.	3000 Kgs.
