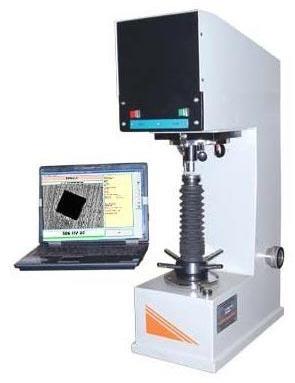

Computerized Vickers Hardness Testing Machine

Get Latest Price

Depth of Throat130mm
Brightness of the light sourcePWM
Power consumption100W
Maximum height100mm
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Material Testing Machine Service

Ichalkaranji, Kolhapur, Maharashtra

View Number

Member Since 14 Years
Nature of Business Retailer
GST No. 27AMWPN0079L1Z9

View Company Details

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Brightness of the light sourcePWM
Measuring range5-3000HV
Power consumption100W
Overall dimensions486*337*657mm
Depth of Throat130mm
Maximum height100mm

Our Computerized Vickers Hardness Testing Machine is efficient in estimating the Vickers hardness number by measuring the diamond’s indentation in an automated way. The result is simply to draw and is accurate enough to rely upon. It is also ideal for estimating the hardness of various metallic components. It is set in absolute accordance with IS 1754 – 2002. We are emerging as the promising Manufacturer and Supplier of Computerized Vickers Hardness Testing Machine in Maharashtra.

The Software Includes :

Online indentation setting and focusing on PC monitor
Facility for Auto / Remote Auto / semi Auto / Manual modes of operation
Well managed database saves readings W.R.T. batch and certificate
Report generation in the form of certificate and graph with variation and histogram
Facility for calibration and check of calibration
Advance image processing algorithm implemented for automatic measurement
Statistical data is provided for a batch results and include standard deviation, mean, medium, minimum and maximum reading
Measuring scale Calibration / Verification on PC monitor

PC Requirements :

1.8 gigahertz (GHz) or faster processor
1 gigabyte (GB) RAM minimum
Microsoft Windows XP operating system
Display screen resolution minimum 1024 by 768 pixels
Two free USB 2.0 ports
Free update of software for Windows 7/8 in near future

Technical Specifications

Total Loads	5, 10, 20, 30, 50, KGF (1kg Optional)
Max. Test Height(Mm)	200
Diagonal Least Count(Mm) Diagonal Measuring Range (MM)	0.001 0.05 TO 0.5
Throat Depth(Mm)	135
Machine Dimension (Approx.)Mm	L 585 X W 290 X H 860
Weight (Approx.)Mm	70 KG.
Power Supply	220VAC, 50HZ, 1PHASE

Accessories

Standard Test Block	1 No.
Diamond Indentor	1 No.
Weights	1 Set
Flat Anvil	1 No.
Vee-Type Anvil ( Small & Big )	1 No. Each
Spanners	1 Set
Electric Cord & Pc Interface Cord	1 No. Each
Usb Video Capture	1 No.
Software Cd	1 No.
Instruction Manual	1 Book
