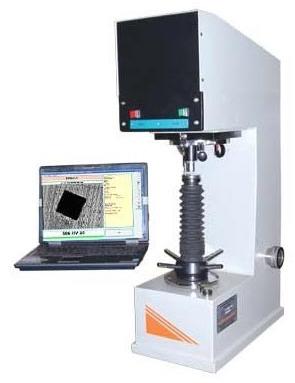

We are offering computerised vickers hardness tester.
vmc' computerized vickers hardness tester is a simple and accurate means to automatically measure the diamond indentation and give vickers hardness number.these testers are suitable for measuring the hardness of precision metallic parts with wide testing range - from soft to hard, and their accurate results are widely acclaimed. These tester strictly confirm to is 1754 - 2002.
technical data
total loads : 5, 10, 20, 30, 50, kgf (1kg optional)max. Test height (mm) : 200diagonal least count (mm)diagonal measuring range (mm) : 0.001, 0.05 to 0.5throat depth(mm) : 135machine dimension (approx.)mm : l 585 x w 290 x h 860weight (approx.)mm : 70 kg.power supply : 220vac, 50hz, 1phase
the software includes
online indentation setting and focusing on pc monitorfacility for auto / remote auto / semi auto / manual modes of operationwell managed database saves readings w.r.t. Batch and certificatereport generation in the form of certificate and graph with variation and histogramfacility for calibration and check of calibrationadvance image processing algorithm implemented for automatic measurementstatistical data is provided for a batch results and include standard deviation, mean, medium, minimum and maximum readingmeasuring scale calibration / verification on pc monitor
pc requirements
2 gigahertz (ghz) or faster processor1 gigabyte (gb) ram minimummicrosoft windows 7/vista/xp operating systemdisplay screen resolution minimum 1024 by 768 pixelstwo free usb 2.0 ports
accessories
standard test block 1 no.diamond indentor 1 no.weights 1 setflat anvil 1 no.vee-type anvil ( small & big ) 1 no. Eachspanners 1 setelectric cord & pc interface cord 1 no. Eachusb video capture 1 no.software cd 1 no.instruction manual 1 book
