Features :
|
• Fully Computerised (PC Based) Brinell Hardness Tester.
• Direct and accurate measurement of Brinell Hardness Number using "State of Art" image processing technology. • 'Wide testing range' : from soft metal such as lead up to medium hardened steels. • High accuracy and repeatability of measurement at all loads. • Faster measurement yielding to higher productivity. • Hydraulic loading and unloading cycle. • Advanced Window based software. |
 |
Latest GUI Features :Â
|
User friendly software with all help file and Window Features.
• Online indentation setting and focusing on PC monitor. • Advance image processing : Algorithms implemented for precise calculation of hardness numbers with various options to cover all ranges of specimen. |
 |
Batch file Processing :
|
Option for data/storage and reports generation.
|
 |
Statistical Evaluation
|
Software foe calculating standard deviation, mode medium, histogram etc.Â
• Wide options in calibration mode. • Extendibility for future advanced image processing analysis, requirements. |
 |

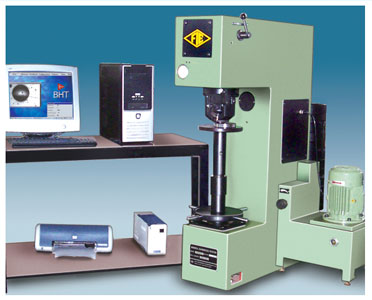

'FIE' Computerised Brinell Hardness Tester is a simpleand a accurate means to produce automatically measures the ball ondentation give Brinell hardness number.
These testers are suitable for measuring the hardness of metallic parts with wide leasting range - from soft to hard, and their accurate results are widely acclaimed. These testers strictly confirm to IS : 2281, BS : 10003-2 and ASTM E-10 |
 |
Construction :
|
The robust machine frame is designed to accommodate the high precision loading system and an optical device with CCD camera. Specimen is placed on a testing table. The test cycle is semi automatic. The accurate load is applied on a ball indentor by means of a lever and weights. After a specific lapse of time. The load is removed. The image is digitized using a CCD camera fitted on the optical device and is captured by the PC. The diameter if the indentation are directly measured by Pc to give the Brinell Hardness Number directly.
|
Total Load | kgf | 500 to 3000 in stages of 250 kgf |
Magnification of objectives | - | 2x |
Max. Test Height | mm | 410 |
Scale least count | mm | 0.01 |
Throat depth | mm | 200 |
Machine Dimension (Approx.) | mm | L 995 x W 400 x H 1178 |
Weight (Approx.) | mm | 450 |
Power Supply | V/Cy/Ph | 415/50/3 |
Measurement Range | mm | 1-6 |
