Compression Type Loadcell

Listing ID #3230582

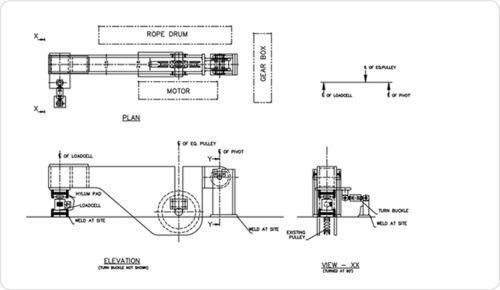

The envisaged Built-in Crane Weighing System consists of Compression type loadcells placed underneath the mechanical assembly supporting the equalizing barpulley. The typical arrangement is shown below.
The output from the loadcells corresponding to the load applied is processed and displayed digitally in the indicator housed in crane control cabin. A separate parallel 50100200300 mm display is also provided at the girder of the crane to enable viewing of the weight from the floor. The system has a potential free contact that would be activated if the crane is over loaded. It is possible to transmit the data from the weighing electronics to a base station receiver through Wi-Fi or ZigBee protocol.
There are options for the electronics to communicate with the crane PLC via analog output or any communication protocol such as MODBUS or Profibus.
The power supply for the system is taken from the single phase AC 230V available in the Crane Cabin. A switch mode power supply is provided internally so that it will take care of voltage variation as well as spikes.
