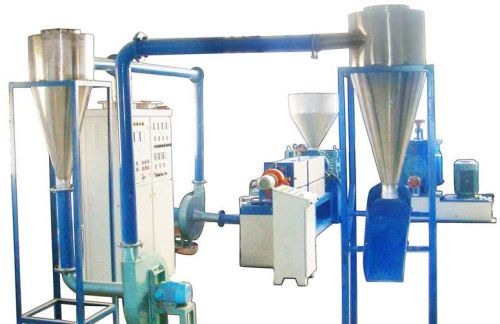

Contact SupplierFrom Maharashtra, we are engaged in offering Compounding and Granulating Machine to our valuable buyers. Our machine is widely popular due to its precise design, reliable operation and high speed. As a trusted Manufacturer, Supplier and Exporter of Compounding and Granulating Machine, we assure customers of providing only a high quality product.
Details :
Compounding and granulating machine is a state of art technology in either of following form:
For the granulating of soft PVC, rigid PVS, ABS etc. and their modification and as well as for the heat sensitive polymers, both the above technologies are capable enough to provide the customer with following benefits.
Compounding Extruder :
The extruder is a study machine in which the gear unit is provided with helical gears that are case harciened and grounded, thus, ensuring uniform power transmission and low noise operation. The axial thrust of the screw is absorbed by a self aligning thrust roller bearing rated for high thrust load and a long service life. The bearing arranged in separate housing being flagged to gear box unit.
Extrusion Process :
For faultless and uniform distribution of plastified material in the screw geometry, the die inlet and die bore are optimized from the Reheological point of view, so that there cannot occur any thermic damage of product in the region. The design is based on the concept of a very low velocity of extrusion through each hole, in order to have low head pressure. This means a thin pellet plate, which also keeps the pressures low. The low pressure in the head allows better control of the polymer's temperature.
Cutting Process :
The blades are placed on blade holders in the combination of 2 and 4, which can be positioned individually towards the die plate via adjusting bolts. The adaption of the granulator length is effected via stepless adjustable A.C. drive, which is directly coupled to blade holder. The blades are made of high tensile and wear resistance steel ensuring long service life.
Cooling & Conveying :
For collecting the granules, the cutting system is attached with the pneumatic conveying system which conveys the granules to the granule cooler. The hot granules are cooled by air and the cooling intensity can be controlled by controlling the Airflow. Afterwards it is flown to vibrating chutes where the flow of air swirls around the granules and the final output is than poured into the open tub or directly into sacks.
SKM-80/30D | SKM-100/30D | SKM-120/30D | SKM-150/30D | |
---|---|---|---|---|
EXTRUDER (mm) | 80 | 100 | 120 | 150 |
ZONES | 5 | 5 | 6 | 7 |
HEATING LOAD (kw) | 25 | 35 | 42 | 54 |
DRIVE (hp) | 30 | 40 | 60 | 100 |
OUTPUT/KG/HR (kw) | 150 | 250 | 400 | 700 |
