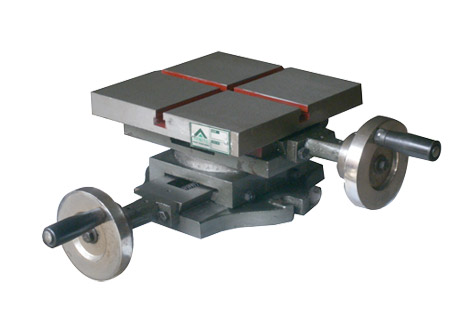

Features :

• The T-Slots are machined from Solid.
• Equipped with two axis positioning.
• Dovetailed slides have adjustable steel gibs to compensate for wear.
• The surface table can swivel all round and 0° is marked to show the angular movement.
• Base have bolt slots for machine mounting.

Application :

• These precision built standard slide tables are essential for accurate boring drilling, grinding, and milling operations

Construction :

• Casting are the close Grey Iron dully stress relieved accurately machined and ground surface provide tolerance well within 0.01 MM / 100 MM.
• Precision ACME feed screw is running in a hot stamped phosphor Steel Nut thrust color for smooth operation and minimum back lash.
• Top surface of the table has two equally spaced cross T-Slots.
