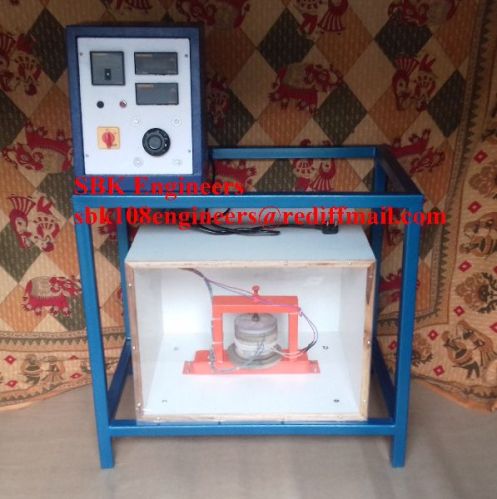

The apparatus consists of a pair of M.S. plates, Bakelite, brass/aluminum. These plates in series on either side of the heater form a composite wall.  The whole unit is clamped in a frame, which can be viewed through the Perspex sheet. The thermocouple tapings enables us to find out the conductivity and resistance of the composite walls.
Specifications :

• Heater- Mica heater of dia. 250 mm.
• Plates- Different Materials
• Dimmerstat – Suitable capacity.

• Measurements

  • A voltmeter and an Ammeter to measure input power.
  • Multichannel digital temperature indicator to measure temperatures at- various points.

A technical manual accompanies the unit.
Services Required :

• 230 V, A.C. stabilized supply along with earthing connection.
• Bench area Im x lm x 0.5m height.

The apparatus consists of a pair of M.S. plates, Bakelite, brass/aluminum. These plates in series on either side of the heater form a composite wall.  The whole unit is clamped in a frame, which can be viewed through the Perspex sheet. The thermocouple tapings enables us to find out the conductivity and resistance of the composite walls.
Specifications :

• Heater- Mica heater of dia. 250 mm.
• Plates- Different Materials
• Dimmerstat – Suitable capacity.

• Measurements

  • A voltmeter and an Ammeter to measure input power.
  • Multichannel digital temperature indicator to measure temperatures at- various points.

A technical manual accompanies the unit.
Services Required :

• 230 V, A.C. stabilized supply along with earthing connection.
• Bench area Im x lm x 0.5m height.
