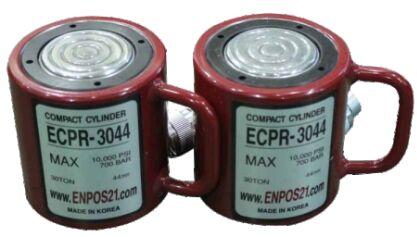

COMPACT JACKS

Listing ID #3869372

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Features Mounting collar designed to hold full force. Single-acting, spring return Tube; SCM440 Special size is

View More Details

Product Details

Model	Cyl. Capacity (tons)	Stroke (mm)	Oil Capacity (cc)	Effect Area (cm2)	Cyl Bore Diameter (mm)	Collapsed Height (mm)	Outside Diameter (mm)	Weight (kg)
Model	Cyl. Capacity (tons)	Stroke (mm)	Oil Capacity (cc)	Effect Area (cm2)	A	B	c	Weight (kg)
ECPR-1044H	10	40	64	15.9	45	99	68	3.2
ECPR-1050	10	50	80	15.9	45	128	63	2.7
ECPR-2038	20	38	119	31.2	65	98	85	4
ECPR-2044H	20	44	125			99	88	5.9
ECPR-2050	20	50	156			128	85	4.9
ECPR-3044H	30	44	184	41.8	73	99	105	6
ECPR-3050	30	50	209	41.8	73	140	97	6.8
ECPR-5050H	50	50	354	70.8	95	109	127	15
ECPR-5050	50	50	354	70.8	95	150	122	11.5
ECPR-10050	100	50	664	132.7	130	139	175	20.4
ECPR-15050	150	50	1,069	213.7	160	165	216	39
ECPR-20050	200	50	1,417	283.4	190	180	245	61
