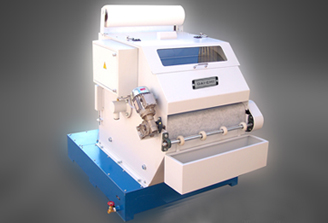

Compact Band Filtration System

Listing ID #4121244

The CBF System consist of two circular disc wheels duly mounted on central pipe connecting to hollow shaft. Which keeps rolling on honey comb belt on the disc axis. Filter media is allowed to pass between disc and the honey comb belt with no relative motion. So perfect sealing is achieved for zero leakage and efficient Filtration.
The dirty coolant is allowed to enter through the centre hollow shaft having multiple pouring slots inside for uniform distribution over the filtration bed. Good hydrostatic head results in building up of dirt Layer Cake with itself enhances the filtration efficiency. As soon as the dirty coolant increase it touches the senser level, the level senser signals geared motor to drive the Honey Comb Belt allowing the new media to pass gradually inside for fresh filtration and at the same time to remove the used media along with the dirt cake. Filtered coolant comes out at the bottom in to the clean tank for pumping back to the machine.

Fully automatic operation practically no manpower is needed for operation. Requires only less floor space when compare to gravity band filter and other conventional filtration system. Can Achieve desired filtration efficiency by using appropriate. filter media High Hydrostatic head giving high filtration efficiency.
Less consumption of power. Consumption of filter media is less, so it saves recurring expenses.

It works on the principle of Hydrostatic Pressure & Gravity with Zero Leakage in Filtration chamber due to perfect Custom built system to suit your application. Filter media used to achieve good filtration efficiency. This system can be used for Individual Machines and also for multiple machines centralized Filtration system for efficient Filtration.
