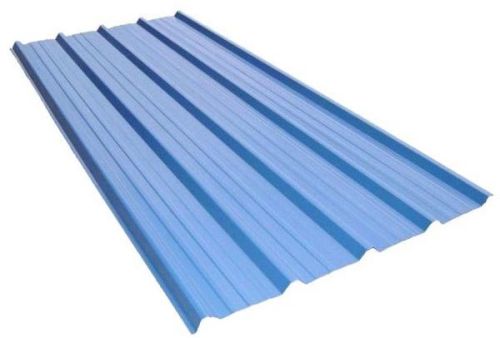

Contact SupplierThe company is engaged in providing Colour Coated Metal Sheets. Colour Coated Metal Sheets are available in the range of superior & aesthetic colors for roofing & wall cladding. Colour Coated Metal Sheets have excellent corrosion & weather resistance thereby ensuring no maintenance and long durability of the roofing system. Galvanized Steel comprises of galvanized coating over mild steel of minimum coating mask 120gm per sq. meter as per IS : 277 & tensile strength of minimum 240 MPA. With high precision roll-forming & component forming machines, we maintain highest standards & you can be assured of quality & reliability of Rooffit Metal sheet roofing products.
Types AvailableDetails
Parameter | Dimensions |
Tough Depth | 30mm |
Pitch | 200mm |
Supplied Width | 1060mm |
Covered Width | 1000mm |
Length | 12.00 Mtr. Max. |
Thickness Range | 0.30-0.80mm |
Parameter | Code | Standard Requirement | Tolerance |
---|---|---|---|
Depth of Profiled Sheet | D | 32.00 mm | ±2.00 mm |
Pitch | P | 195.00 mm | ±5.00 mm |
Supplied Width | O | 1057.00 mm | ±5.00 mm |
Covered Width | E | 975.00 mm | ±5.00 mm |
Length | RL | 10.00 mm | ±5.00 mm |
Tolerances
|
